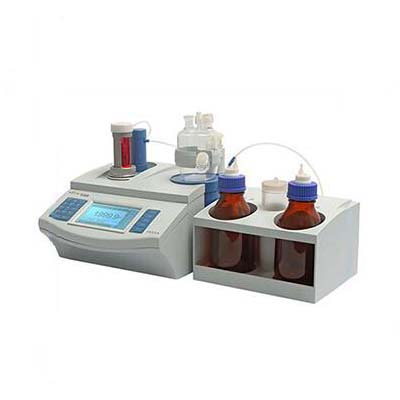

ZDY-504 Constant Moisture Titrator
Product Introduction
The
ZDY-504 Constant Moisture Titrator is a Karl Fischer titration instrument
designed for accurate water content determination using both volumetric and
coulometric methods. It covers a wide range of moisture concentrations, from
trace water levels to higher moisture contents, making it suitable for
laboratories that analyze different sample types.
The
instrument features guided operation, automated KF reagent handling, multiple
titration modes, and flexible measurement result units. Its data storage,
review, printing, and output functions support routine laboratory workflows,
while protective features help reduce direct operator contact with Karl Fischer
reagents.
Performance Features
1. Dual measurement
methods: Supports volumetric titration for higher moisture contents and coulometric
titration for trace moisture analysis.
2. Clear operation interface: Dot-matrix
LCD, keypad operation, and optional computer-based Chinese software control
provide access to test methods and results.
3. Guided titration
workflow: Dialogue-style operation simplifies parameter settings and titration
procedures.
4. Automated reagent
handling: Supports automatic liquid filling, liquid discharge, KF reagent mixing, and
cleaning.
5. Safety protection: Includes
anti-leakage protection, a waste-bottle anti-suckback device, and protection
against titration-cup solution overflow.
6. Multiple titration modes: Supports
pre-titration, automatic titration, manual titration, constant titration, and
KF titration determination.
7. Flexible burette configuration: Supports
multiple burette types and burette coefficient calibration.
8. Multiple result
units: Volumetric mode supports mg, mg/L, %, and ppm; coulometric mode additionally
supports μg and μg/mL.
9. Data management: Stores up
to 200 sets of constant-moisture and trace-moisture measurement data, with
functions for reviewing, deleting, printing, and outputting results.
10. Reliable operation
and upgrades: Provides power-off protection, KF reagent failure
detection and alerts, RS232 serial printer support, and firmware/software
upgrades.
Working Principle
The
ZDY-504 uses the Karl Fischer reaction to determine the water content in a
sample. It offers two analytical methods:
• Volumetric method: A Karl
Fischer reagent of known concentration is added to the sample until the
titration endpoint is reached. The amount of reagent consumed is used to
calculate the water content.
• Coulometric
method: Iodine required for the Karl Fischer reaction is generated electrochemically.
The electrical charge consumed during the reaction is used to determine trace
water content.
The
instrument monitors the titration process and calculates the result according
to the selected method. Users can choose the appropriate method based on the
sample's expected moisture concentration and analytical requirements.
Technical Parameters
Parameter
Specification
Model
ZDY-504
Measurement
methods
Volumetric
and coulometric Karl Fischer titration
Volumetric
measurement range
0.1–250.0
mg
Coulometric
measurement range
10
μg–20 mg
Volumetric
result units
mg,
mg/L, %, ppm
Coulometric
result units
μg,
mg, %, ppm, mg/L, μg/mL
Polarization
current
1
μA ± 0.2 μA; 50 μA ± 10 μA
Coulometric
electrolysis current
10
mA, 20 mA, 50 mA, 100 mA
Coulometric
indication error
±(5%
of verification-point value + 3) μg*
Volumetric
repeatability
≤0.5%
Coulometric
repeatability
RSD
≤3% at the 100 μg measurement point
Data
storage
200
sets of measurement data
Printer
interface
RS232
serial interface
Dimensions
(L × W × H)
340
× 400 × 400 mm
Weight
Approximately
10 kg
Note: The coulometric indication-error specification has
been normalized from the supplied source, which states “±(5% verification point
+ 3) μ3.” Please confirm the exact unit and formula with the manufacturer
before publishing.
Application Scenarios
The
ZDY-504 Karl Fischer moisture titrator can be used in laboratories and
quality-control environments that require water content determination,
including:
• Chemical and
petrochemical laboratories: Moisture analysis of solvents, chemical raw
materials, and process samples.
• Pharmaceutical
laboratories: Water content testing of suitable raw materials and
intermediates.
• Oil and lubricant
testing: Moisture determination in applicable oils and related products.
• Food and ingredient
analysis: Moisture testing of compatible raw materials and products.
• Industrial
quality control: Routine moisture testing during incoming inspection,
production, and final quality assessment.
• Research laboratories: Volumetric
and trace-moisture analysis for different sample types.
The
appropriate sample preparation procedure and titration method should be
selected according to the sample's properties and the applicable test method.
ZDY-504 vs. Conventional Moisture Titrators
Comparison Item
ZDY-504
Conventional Single-Method Titrator
Measurement
methods
Volumetric
and coulometric
Often
limited to one method
Moisture
analysis
Supports
higher and trace moisture ranges
Depends
on instrument configuration
Titration
modes
Multiple
automatic and manual modes
May
offer fewer operating modes
Reagent
handling
Automated
filling, discharge, mixing, and cleaning functions
May
require more manual handling
Result
units
Multiple
units for each method
Depends
on model
Data
management
Stores
up to 200 sets of data
Depends
on model
Safety
features
Leakage,
suckback, and overflow protection
Depends
on model
Data
output
RS232
printer support and result output
Depends
on interface configuration
Frequently Asked Questions
1. What is the ZDY-504 Constant Moisture Titrator used for?
It
is used to determine water content in samples through Karl Fischer volumetric
or coulometric titration, covering both higher moisture contents and trace
moisture analysis.
2. What is the difference between volumetric and
coulometric titration?
Volumetric
titration measures water based on the volume of Karl Fischer reagent consumed.
Coulometric titration generates iodine electrochemically and determines water
content from the electrical charge required for the reaction.
3. What are the measurement ranges of the ZDY-504?
The
volumetric range is 0.1–250.0 mg, while the coulometric range is 10 μg–20 mg.
4. How repeatable are its measurement results?
The
specified volumetric repeatability is ≤0.5%. For coulometric measurements, the
relative standard deviation is ≤3% at the 100 μg measurement point.
5. Does the instrument support automatic titration?
Yes.
It supports pre-titration, automatic titration, manual titration, constant
titration, and other KF titration functions.
6. Can the ZDY-504 store and export test data?
Yes.
It can store up to 200 sets of constant-moisture and trace-moisture measurement
data. Users can review, delete, print, or output stored results.
7. Does the instrument help reduce operator contact with KF
reagents?
Yes.
Automated liquid handling and cleaning functions, together with anti-leakage,
anti-suckback, and overflow protection, are designed to help reduce direct
reagent contact and improve operational safety.
8. What are the dimensions and weight of the ZDY-504?
The
instrument measures approximately 340 × 400 × 400 mm and weighs about 10 kg.
