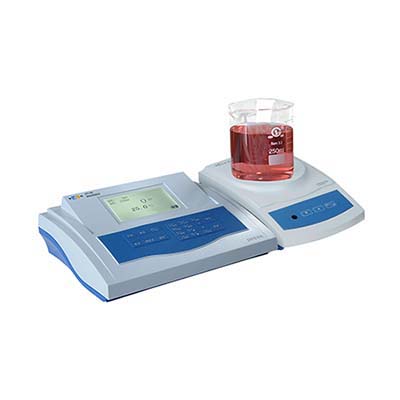

ZDY-500 Automatic Polarization Titrator
Product Introduction
The ZDY-500 Automatic Polarization Titrator is a laboratory analytical instrument designed for chemical titration and endpoint detection. Featuring an LCD display and both manual and automatic titration modes, it enables flexible operation for different analytical procedures.
The instrument provides selectable polarization voltages, adjustable endpoint settings, and multiple polarization current measurement ranges to accommodate different chemical analysis requirements. Its compact design makes it suitable for routine laboratory testing, chemical analysis, and research applications.
Performance Features
• Dual Titration Modes: Supports both manual and automatic titration.
• LCD Display: Provides a clear interface for operating and monitoring titration procedures.
• Adjustable Polarization Voltage: Selectable settings of 30 mV, 50 mV, and 100 mV.
• Flexible Endpoint Settings: Offers ten endpoint setting levels from 10 to 100 μA.
• Four Current Measurement Ranges: Supports current detection sensitivity settings of 0.001 μA, 0.01 μA, 0.1 μA, and 1 μA.
• Reliable Endpoint Control: Endpoint control sensitivity error of ±5% FS.
• Repeatable Analysis: Volume analysis repeatability error of 0.2% of reading.
• Compact Construction: Measures 280 × 210 × 120 mm and weighs approximately 5 kg.
Working Principle
The ZDY-500 uses polarization current detection to support titration endpoint identification. During analysis, the operator selects the appropriate polarization voltage, current sensitivity, and endpoint setting for the sample and analytical method.
The instrument monitors the polarization current as titration proceeds and uses the selected endpoint criteria to support endpoint control. Manual and automatic modes provide flexibility for different laboratory workflows.
Technical Parameters
|
Parameter |
Specification |
|
Model |
ZDY-500 |
|
Titration Range |
0–10 mL; 0–25 mL |
|
Polarization Voltage |
30 mV, 50 mV, 100 mV |
|
Endpoint Control Sensitivity Error |
±5% FS |
|
Polarization Current Detection Error |
±2.5% FS |
|
Volume Analysis Repeatability Error |
0.2% of reading |
|
Polarization Current Detection Sensitivity |
0.001 μA, 0.01 μA, 0.1 μA, 1 μA |
|
Endpoint Settings |
10, 20, 30, 40, 50, 60, 70, 80, 90, 100 μA |
|
Display |
LCD |
|
Operating Modes |
Manual and automatic titration |
|
Power Supply |
AC (220 ± 22) V, (50 ± 1) Hz |
|
Dimensions |
280 × 210 × 120 mm |
|
Weight |
5 kg |
Application Scenarios
• Chemical Analysis Laboratories: Supports routine titration procedures and analytical testing.
• Research Institutions: Suitable for laboratory research involving polarization-based titration.
• Quality Control Laboratories: Helps standardize titration procedures and endpoint settings.
• Industrial Testing Laboratories: Supports chemical testing in relevant production and quality-control workflows.
• Educational Laboratories: Can be used for teaching and demonstrating manual and automatic titration techniques.
ZDY-500 vs. Conventional Manual Titration
|
Feature |
ZDY-500 Automatic Polarization Titrator |
Conventional Manual Titration |
|
Operating Mode |
Manual and automatic |
Typically manual |
|
Endpoint Settings |
Selectable settings from 10 to 100 μA |
Depends on the method and operator |
|
Polarization Voltage |
Three selectable settings |
Depends on the equipment |
|
Current Sensitivity |
Four selectable ranges |
Depends on the equipment |
|
Endpoint Control |
Instrument-assisted endpoint control |
Often relies on visual or operator judgment |
|
Operating Format |
Compact benchtop instrument |
Varies by setup |
Frequently Asked Questions
1. What is the ZDY-500 automatic titrator used for?
It is designed for laboratory titration and chemical analysis using polarization current detection to support endpoint control.
2. Does the ZDY-500 support automatic titration?
Yes. It supports both manual and automatic titration modes.
3. What titration ranges are available?
The instrument provides two listed titration ranges: 0–10 mL and 0–25 mL.
4. Which polarization voltages can be selected?
The available settings are 30 mV, 50 mV, and 100 mV.
5. How many current sensitivity ranges does the instrument provide?
It provides four settings: 0.001 μA, 0.01 μA, 0.1 μA, and 1 μA.
6. What endpoint settings are available?
The endpoint can be set to 10, 20, 30, 40, 50, 60, 70, 80, 90, or 100 μA.
7. What is the volume analysis repeatability?
The specified volume analysis repeatability error is 0.2% of the reading.
8. What are the power requirements and dimensions?
The instrument operates on AC 220 ± 22 V at 50 ± 1 Hz. Its dimensions are 280 × 210 × 120 mm, and its weight is 5 kg.
9. What should be considered when selecting measurement settings?
Select the polarization voltage, current sensitivity, and endpoint setting according to the analytical method and sample characteristics. Follow the applicable test procedure to ensure appropriate measurement conditions.
