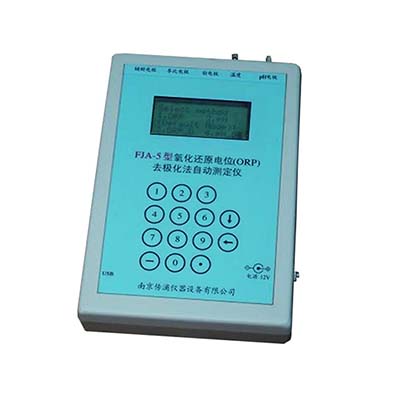

FJA-5 ORP Depolarization Method Meter
Product Introduction
The
FJA-5 ORP Depolarization Method Meter is an automatic electrochemical
instrument designed for measuring oxidation-reduction potential (ORP), also
known as redox potential (Eh). Unlike conventional ORP measurement methods, it
uses positive and negative polarization to determine the final potential,
helping improve measurement precision and reduce measurement time.
The
instrument automatically controls polarization and depolarization timing,
changes polarity, compensates for reference electrode potential according to
temperature, and processes measurement data. It can operate independently for
field measurements or connect to a PC or laptop through USB for automated
measurement, data storage, and curve generation.
With
its integrated electrode system, microcomputer control, and dedicated
application software, the FJA-5 supports single measurements as well as
continuous or cyclic data collection.
Performance Features
• Automatic
polarization control: Automatically manages polarization and
depolarization times throughout the measurement process.
• Positive
and negative polarization: Uses an alternative measurement approach to
conventional ORP measurement methods.
• Automatic
polarity switching: Changes electrode polarity automatically
during measurement.
• Temperature
compensation: Automatically corrects the reference electrode potential
using a temperature-based lookup table.
• Multi-parameter
measurement: Supports ORP, temperature, and pH measurement;
simultaneous measurement of all three parameters is available when connected to
a PC.
• Automatic
data processing: Controls the measurement sequence and processes results
automatically.
• PC connectivity: Connects to
a computer or laptop through a USB interface.
• Curve generation and
data storage: PC software can automatically generate measurement curves
and save results.
• Flexible measurement
modes: Supports individual measurements and cyclic data collection.
• Portable operation: Can operate
independently in the field or as part of a PC-based measurement system.
Working Principle
The
FJA-5 determines oxidation-reduction potential using a positive and negative
polarization depolarization method.
During
measurement, the instrument automatically controls the polarization period,
switches polarity, and manages the subsequent depolarization process. It
collects the electrode response and processes the resulting data to determine
the final ORP/Eh value.
The
instrument also measures temperature and uses a temperature-based lookup table
to compensate for the reference electrode potential. This helps account for
temperature-related changes in the reference electrode.
When
connected to a PC, the application software controls the measurement process,
processes the data, generates curves, and saves measurement results. The system
can be configured for either single measurements or cyclic data collection.
Technical Parameters
Parameter
Specification
Measurement
Parameter
ORP
/ Eh
ORP
Measurement Range
0
to +1999.9 mV
Minimum
Reading
0.1
mV
ORP
Measurement Accuracy
Less
than 10 mV
Input
Impedance
Greater
than 10¹⁰ Ω
Minimum
Measurement Time
2
minutes
Measurement
Method
Positive
and negative polarization depolarization method
Temperature
Compensation
Automatic
reference electrode potential compensation
Communication
Interface
USB
Measurement
Modes
Single
measurement and cyclic data collection
Application Scenarios
The
FJA-5 ORP Depolarization Method Meter can be used for redox potential
measurement and electrochemical research in applications such as:
• Water
quality analysis: Measuring oxidation-reduction potential in
water samples and treatment processes.
• Environmental
monitoring: Evaluating redox conditions in environmental samples.
• Soil
and sediment research: Supporting studies of oxidation-reduction
conditions in soil and sediment systems.
• Laboratory
electrochemistry: Measuring Eh in electrochemical experiments
and research.
• Industrial
process monitoring: Evaluating redox conditions in processes where
oxidation-reduction potential is an important parameter.
• Field
measurements: Performing independent measurements without requiring a
connected PC.
Comparison:
FJA-5 Depolarization Method vs. Conventional ORP
Measurement
Comparison Item
FJA-5 Depolarization Method
Conventional ORP Measurement
Measurement
Principle
Positive
and negative polarization
Conventional
electrode potential measurement
Measurement
Control
Automatic
polarization and depolarization timing
Depends
on instrument operation
Polarity
Switching
Automatic
Depends
on instrument
Reference
Electrode Compensation
Temperature-based
automatic compensation
Depends
on instrument
Data
Processing
Automatic
Depends
on instrument
Measurement
Output
Final
processed measurement result
May
depend on measurement stabilization and reading procedure
Data
Management
PC-based
curve generation and automatic saving
Depends
on instrument
Measurement
Modes
Single
and cyclic data collection
Depends
on instrument
Frequently Asked Questions
1. What does the FJA-5 ORP meter measure?
The
FJA-5 measures oxidation-reduction potential (ORP), also known as redox
potential or Eh. Its stated measurement range is 0 to +1999.9 mV.
2. What is the depolarization method used by the FJA-5?
The
instrument uses positive and negative polarization during measurement. It
automatically controls polarization and depolarization timing, switches
polarity, and processes the electrode response to determine the final
potential.
3. What is the minimum measurement time?
The
minimum time required to complete one measurement is 2 minutes.
4. Does the FJA-5 support temperature compensation?
Yes.
It automatically determines the reference electrode potential using a
temperature-based lookup table to compensate for temperature-related changes.
5. Can the FJA-5 measure pH and temperature?
The
product description specifies support for ORP, temperature, and pH measurement.
Simultaneous measurement of all three parameters is available when the
instrument is connected to a PC.
6. Can the instrument operate without a computer?
Yes.
The FJA-5 can operate independently for field measurements. A PC or laptop can
be connected through USB for software-controlled measurements and data
management.
7. Does the FJA-5 support continuous monitoring?
It
supports cyclic data collection in addition to individual measurements. The PC
software can automatically collect, process, save, and display measurement
data.
8. What is the input impedance of the FJA-5?
The
specified input impedance is greater than 10¹⁰ Ω.
