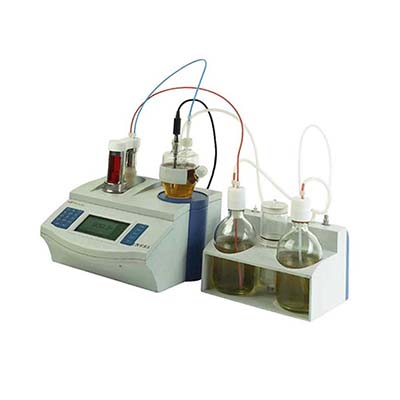

ZDY-502 Karl Fischer Water Titration Apparatus
Product Introduction
The ZDY-502 Karl Fischer Water Titration Apparatus is an analytical instrument designed for quantitative water content determination in laboratory samples. Featuring convenient automatic titration functions, multiple measurement modes, and flexible result reporting, it supports routine moisture analysis in quality control laboratories, chemical industries, pharmaceutical manufacturing, and other applications requiring accurate water content measurement.
The instrument integrates a liquid crystal display, keypad operation, and computer-based control options to simplify testing and method management. Its measurement range of 0.1–250 mg and resolution of 0.1 mg support water determination across a range of sample types and moisture levels.
Designed with reagent handling safeguards, reagent failure detection, power protection, and data connectivity, the ZDY-502 helps improve operational convenience, measurement traceability, and laboratory workflow efficiency.
Performance Features
1. Automatic Titration System: Provides convenient automated titration functions to simplify routine Karl Fischer water content analysis.
2. GLP-Oriented Data Management: Supports more complete measurement records and traceability information to assist laboratory documentation and quality management.
3. Firmware Upgrade Capability: Supports firmware version upgrades, helping maintain instrument functionality and reduce the need for unnecessary hardware replacement.
4. Flexible Control Options: Features a dot-matrix LCD display and keypad, with computer software control available in Chinese. The instrument can be operated through the supported control methods.
5. Real-Time Test Information: Displays relevant test methods and measurement results during operation for convenient monitoring.
6. Multiple Titration Modes: Supports preliminary titration, manual titration, automatic titration, constant titration, and Karl Fischer (KF) titration measurement modes.
7. Convenient Reagent Handling: Supports KF reagent filling, drainage, and mixing functions to reduce direct user contact with reagents and improve handling convenience.
8. Titration Cup Spill Protection: Incorporates an automatic protection function designed to help prevent titration solution spills.
9. Reagent Failure Detection: Provides KF reagent failure detection and alert functions to help users identify reagent-related issues during testing.
10. Multiple Result Units: Allows measurement results to be reported in mg, mg/L, %, ppm, and other supported units according to testing requirements.
11. Power Protection: Includes a power protection function to help safeguard instrument operation and stored information.
12. USB and RS-232 Interfaces: Supports computer connectivity through USB and printing through the available interfaces, facilitating data transfer and result documentation.
13. Factory Settings Restoration: Supports restoring factory settings for convenient instrument configuration management.
Working Principle
The ZDY-502 uses the Karl Fischer titration method to determine the water content of a sample. In this analytical method, water reacts quantitatively with the Karl Fischer reagent under suitable chemical conditions.
During testing, the prepared sample is introduced into the titration vessel containing the appropriate KF reagent. The instrument controls the titration process and monitors the endpoint using the configured detection system. The amount of reagent consumed is used to calculate the water content in the sample.
Depending on the selected method and sample characteristics, the result can be expressed in milligrams, milligrams per liter, percentage, parts per million, or other supported units. Automatic titration, real-time result display, and data management functions help improve testing efficiency and documentation.
Technical Parameters
|
Parameter |
Specification |
|
Model |
ZDY-502 |
|
Instrument Type |
Karl Fischer Water Titration Apparatus |
|
Measuring Range |
0.1–250 mg |
|
Resolution |
0.1 mg |
|
Polarization Current Accuracy |
±0.2 μA |
|
Burette Capacity Tolerance |
±0.025 mL for a 10 mL burette |
|
Titration Analysis Repeatability |
0.75% |
|
Titration Modes |
Preliminary, manual, automatic, constant, and KF titration measurement |
|
Display |
Dot-matrix LCD |
|
Operation |
Keypad and supported computer software control |
|
Result Units |
mg, mg/L, %, ppm, and other supported units |
|
Reagent Management |
Filling, drainage, and KF reagent mixing functions |
|
Reagent Monitoring |
KF reagent failure detection and alerts |
|
Data Interfaces |
USB and RS-232 |
|
Printing |
Supported through the compatible interface and printer configuration |
|
Firmware |
Upgrade supported |
|
Settings Management |
Factory settings restoration supported |
Note: The manufacturer has not specified the sample-dependent measurement conditions, exact GLP data-record fields, or the detailed definition of the repeatability value in the supplied information. Confirm these details before using the instrument for regulated testing.
Application Scenarios
The ZDY-502 Karl Fischer Water Titration Apparatus is suitable for laboratory applications requiring quantitative determination of water content.
• Pharmaceutical Industry: Water content testing of suitable raw materials, intermediates, and finished products using validated analytical methods.
• Chemical Manufacturing: Moisture determination in chemical raw materials, solvents, and industrial chemical products.
• Petroleum and Petrochemical Laboratories: Water analysis in compatible oils, fuels, and related materials.
• Food and Beverage Testing: Determination of water content in suitable food ingredients and processed products.
• Quality Control Laboratories: Routine moisture testing, batch comparison, and analytical record management.
• Materials Research: Water content analysis of chemical materials, powders, and other compatible samples.
• Third-Party Testing Laboratories: Quantitative moisture determination and result documentation for customer samples.
Sample suitability depends on solubility, chemical compatibility, side reactions, and the selected Karl Fischer method.
Comparison: ZDY-502 vs. Conventional Manual Karl Fischer Titration
|
Feature |
ZDY-502 Karl Fischer Titrator |
Conventional Manual Titration |
|
Titration Operation |
Automatic and manual modes |
Primarily manual |
|
Measuring Range |
0.1–250 mg |
Depends on the method and equipment |
|
Resolution |
0.1 mg |
Depends on the equipment |
|
Reagent Handling |
Integrated filling, drainage, and mixing functions |
Often requires more manual handling |
|
Endpoint Monitoring |
Instrument-controlled titration functions |
Depends on the detection arrangement |
|
Result Display |
Real-time test information and results |
Depends on the setup |
|
Result Units |
Multiple supported units |
Depends on calculation and reporting procedures |
|
Data Connectivity |
USB and RS-232 |
Often requires separate data recording |
|
Reagent Failure Alerts |
Supported |
Depends on the equipment |
|
Data Traceability |
GLP-oriented information management features |
Depends on laboratory documentation procedures |
This is a general functional comparison, not a direct performance comparison against a specific manual titration system.
Frequently Asked Questions
Q1: What is the measuring range of the ZDY-502 Karl Fischer Water Titrator?
The specified measuring range is 0.1–250 mg, with a resolution of 0.1 mg.
Q2: What is the principle of the ZDY-502?
It uses the Karl Fischer titration method, in which water reacts quantitatively with KF reagent and the reagent consumption is used to determine the sample's water content.
Q3: Does the ZDY-502 support automatic titration?
Yes. It supports automatic titration as well as preliminary, manual, constant, and other specified KF titration modes.
Q4: Which units can be used to report water content?
Supported result units include mg, mg/L, %, and ppm. The appropriate unit depends on the sample, calculation method, and reporting requirements.
Q5: How does the instrument improve reagent handling safety?
It provides reagent filling, drainage, and mixing functions designed to reduce direct contact with KF reagents. Its titration cup also has an automatic spill-protection function. Appropriate laboratory PPE and reagent-handling procedures remain necessary.
Q6: Does the instrument provide reagent failure alerts?
Yes. The ZDY-502 includes KF reagent failure detection and alert functions to help users identify reagent-related problems.
Q7: Can the ZDY-502 connect to a computer?
Yes. USB connectivity supports computer connection, and compatible software can be used for instrument control and data management. An RS-232 interface is also provided for supported peripheral connections.
Q8: What is the titration analysis repeatability?
The supplied specification lists titration analysis repeatability as 0.75%. Confirm the manufacturer's test conditions and calculation method when evaluating analytical performance.
Q9: Which industries can use the ZDY-502?
Potential applications include pharmaceutical, chemical, petroleum, food, materials, and general quality control laboratories where Karl Fischer water determination is suitable.
