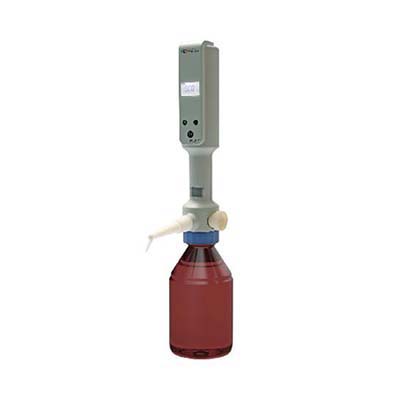

ZD-1 Portable Digital Titrator

Product Introduction

The ZD-1 Portable Digital Titrator is a compact precision liquid-dosing instrument designed for quantitative addition, continuous dispensing, and laboratory titration workflows. With a measuring range of 0.01–99.99 mL and a resolution of 0.01 mL, it supports controlled liquid delivery for analytical procedures.

The instrument features a clear LCD display, 10-stage adjustable dispensing speed, and two operating modes for titration and pipetting. Powered by a lithium battery, the ZD-1 is suitable for both laboratory use and on-site testing where portability and convenient operation are important.


Performance Features

•   Precision Dosing: Supports liquid addition with a resolution of 0.01 mL.

•  Wide Measuring Range: Measures and dispenses within a range of 0.01–99.99 mL.

• 10-Stage Speed Adjustment: Provides adjustable dispensing speed for different operating requirements.

•  Dual Operating Modes: Switches between titration and pipetting by turning the manual knob.

•   Two Addition Modes: Supports quantitative addition and continuous addition.

•   LCD Display: Provides clear, intuitive readings during operation.

•  Lithium Battery Power: Enables convenient portable operation without relying on a continuous mains power connection.

• Compact and Lightweight: Weighs approximately 1.5 kg for convenient transport and handling.


Working Principle

The ZD-1 controls liquid delivery through a digital dosing mechanism. The operator selects the required operating mode and dispensing speed, then uses the instrument to deliver liquid either continuously or in a preset quantity.

Turning the manual knob changes the operating direction, allowing the instrument to detect whether it is operating in titration or pipetting mode. The LCD display provides a direct readout to support precise dosing and routine analytical workflows.

Technical Parameters

Parameter

Specification

Model

ZD-1

Measuring Range

0.01–99.99 mL

Resolution

0.01 mL

Display

LCD

Adjustable Speed

10 stages

Burette Capacity Tolerance

±0.025 mL for a 10 mL burette

Operating Modes

Titration and pipetting

Addition Modes

Quantitative addition and continuous addition

Power Supply

Lithium battery

Dimensions

200 × 80 × 350 mm

Weight

1.5 kg


Application Scenarios

• University Laboratories: Supports analytical chemistry experiments and laboratory teaching.

• Scientific Research Institutions: Provides controlled liquid dosing for research procedures.

• Petrochemical Laboratories: Assists with liquid addition during relevant chemical analysis workflows.

• Pharmaceutical Laboratories: Supports laboratory dosing and analytical preparation.

• Drug Testing Laboratories: Can be used in suitable liquid-handling and analytical procedures.

•  Metallurgical Laboratories: Assists with chemical testing and sample analysis.

• Field Testing: Portable battery-powered operation supports use outside fixed laboratory workstations.


ZD-1 vs. Conventional Manual Liquid Dosing

Feature

ZD-1 Portable Digital Titrator

Conventional Manual Dosing

Dosing Resolution

0.01 mL

Depends on the device and technique

Speed Control

10 adjustable stages

Usually operator-controlled

Operating Modes

Titration and pipetting

Depends on the equipment

Addition Methods

Quantitative and continuous

Depends on the equipment

Display

LCD digital readout

May require manual reading

Portability

Battery-powered, 1.5 kg

Depends on the setup

Burette Capacity Tolerance

±0.025 mL for a 10 mL burette

Depends on the burette


Frequently Asked Questions

1. What is the ZD-1 portable digital titrator used for?

It is used for precision liquid dosing, quantitative addition, continuous addition, and suitable titration or pipetting workflows in laboratories and field-testing environments.

2. What is the measuring range of the ZD-1?

The specified measuring range is 0.01–99.99 mL.

3. What is its dosing resolution?

The stated resolution is 0.01 mL, enabling fine control over liquid addition.

4. Can the dispensing speed be adjusted?

Yes. The ZD-1 offers 10 speed settings to accommodate different dosing requirements.

5. What operating modes are supported?

It supports titration and pipetting modes. The operating mode is detected when the manual knob direction is changed.

6. Does the instrument support continuous dispensing?

Yes. It supports both continuous addition and quantitative addition.

7. Is the ZD-1 suitable for field use?

Yes. Its portable design and lithium battery power supply make it suitable for on-site applications where mains power may not be convenient.

8. What is the tolerance of the 10 mL burette?

The specified burette capacity tolerance is ±0.025 mL for the 10 mL burette.

9. What are the dimensions and weight of the instrument?

The dimensions are 200 × 80 × 350 mm, and the stated weight is 1.5 kg.
