Product Introduction

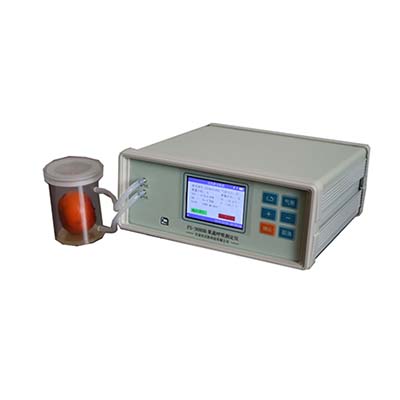

The FS-3080B Fruit and Vegetable Respiration Tester is an analytical instrument designed to monitor respiratory gas exchange and environmental conditions in fruits and vegetables. By measuring carbon dioxide (CO₂), oxygen (O₂), temperature, and humidity, it helps users evaluate produce respiration characteristics and support postharvest quality management.

The instrument combines infrared CO₂ detection with electrochemical oxygen measurement, providing key gas concentration data for research, storage evaluation, and agricultural quality control. A 3.5-inch TFT true-color LCD offers a clear interface, while the built-in 16 GB memory supports convenient data storage and retrieval.

With automatic result calculation, adjustable gas flow, and USB connectivity for direct data export, the FS-3080B simplifies measurement workflows and helps users organize test results for further analysis. Its applications include postharvest research, fruit and vegetable storage studies, agricultural laboratories, and food quality assessment.

Performance Features

1. 3.5-Inch TFT Color Display: Provides a clear, full-color interface for convenient operation and real-time viewing of measurement results.

2. Large-Capacity Data Storage: Includes 16 GB of memory for storing measurement records and calculated results.

3. Automatic Result Calculation: Processes measurement data automatically, reducing manual calculations and improving workflow efficiency.

4. Direct USB Data Export: Exports measured data and calculated results through USB without requiring dedicated computer software for basic data transfer.

5. Excel-Compatible Data Management: Supports saving exported data in Excel format for recordkeeping, comparison, and further analysis.

6. Charts and Curve Generation: Computer-based data processing can generate charts and curves to help users analyze trends and compare test results.

7. Infrared CO₂ Detection: Measures carbon dioxide concentrations using infrared detection technology, with a specified range of 0–5000 ppm.

8. Electrochemical O₂ Detection: Measures oxygen concentrations over a range of 0–100%, supporting respiratory gas analysis.

9. Adjustable Gas Flow: Uses a miniature gas flow meter with flow settings adjustable through the instrument.

10. Integrated Environmental Monitoring: Measures temperature and humidity to help assess environmental conditions during respiration testing.

Working Principle

The FS-3080B Fruit and Vegetable Respiration Tester evaluates produce respiration by measuring changes in gas composition and relevant environmental parameters.

Carbon dioxide measurement: The instrument uses infrared detection to measure CO₂ concentration. Carbon dioxide absorbs infrared radiation at characteristic wavelengths, and the detector analyzes the absorption signal to determine gas concentration.

Oxygen measurement: An electrochemical sensor measures oxygen concentration through a chemical reaction that generates an electrical signal related to the oxygen level.

Temperature and humidity measurement: Integrated sensing components measure temperature and relative humidity, providing additional information about the conditions under which the produce is tested.

During operation, gas flow is controlled using the instrument's miniature flow meter. The measured parameters are displayed and processed automatically, and the results can be stored internally or exported through USB for subsequent analysis.

By comparing CO₂ and O₂ measurements over time under controlled conditions, users can study respiration patterns and evaluate how storage conditions affect the physiological activity of fruits and vegetables.

Technical Parameters

Note: The supplied feature description identifies the instrument as FS-3080B, while the technical specification heading refers to FS-3080A. Confirm the applicable model and specifications with the manufacturer before publication or purchase. The gas flow range, flow accuracy, sample chamber configuration, and humidity sensor response time were not provided.

Application Scenarios

The FS-3080B Fruit and Vegetable Respiration Tester is suitable for applications involving postharvest physiology, storage optimization, and produce quality research.

• Fruit Storage Research: Monitor respiratory gas changes to evaluate how storage temperature and atmosphere influence fruit respiration.

• Vegetable Preservation Studies: Assess oxygen consumption and carbon dioxide production under different storage conditions.

• Postharvest Quality Control: Collect respiration-related data to support quality evaluation and storage management.

•  Controlled Atmosphere Storage: Monitor CO₂ and O₂ concentrations during experiments involving modified or controlled storage atmospheres.

•  Agricultural Research Institutions: Study respiration characteristics across crop varieties, maturity stages, and storage treatments.

•   Food Science Laboratories: Investigate the relationship between respiration activity and postharvest quality changes.

•  Cold Chain Research: Evaluate how temperature conditions relate to produce respiration during storage and distribution.

•   Packaging Research: Compare gas exchange patterns in different packaging systems when used with a suitable sampling setup.

Comparison: FS-3080B vs. Conventional Gas Measurement Methods

This comparison describes general functional differences and does not represent a direct performance test against a specific competing instrument.

 Frequently Asked Questions

Q1: What does the FS-3080B Fruit and Vegetable Respiration Tester measure?

It measures carbon dioxide concentration, oxygen concentration, temperature, and humidity to support the study of produce respiration and postharvest storage conditions.

Q2: What is the CO₂ measurement range?

The specified CO₂ measurement range is 0–5000 ppm, with a resolution of 1 ppm and a response time of no more than 15 seconds.

Q3: What is the oxygen measurement range?

The electrochemical oxygen sensor measures concentrations from 0 to 100%, with a specified response time of 30 seconds.

Q4: Can the instrument export data to a computer?

Yes. The instrument supports direct USB data export without requiring dedicated software for basic transfer. Exported records can be saved in Excel-compatible format for further analysis.

Q5: Does the FS-3080B calculate results automatically?

Yes. The instrument automatically calculates measurement results and displays them on the TFT color screen.

Q6: Can the gas flow rate be adjusted?

Yes. The instrument uses a miniature gas flow meter, and the flow rate can be set through the instrument. The available flow range should be confirmed with the manufacturer.

Q7: Why are both CO₂ and O₂ measured during respiration testing?

Respiring produce generally consumes oxygen and releases carbon dioxide. Monitoring both gases helps characterize respiratory activity and assess changes under different storage conditions.

Q8: Can the instrument be used for controlled atmosphere storage research?

Yes. Its CO₂ and O₂ measurement capabilities can support controlled atmosphere research, provided the sampling arrangement and measurement ranges are appropriate for the test conditions.

Q9: What power supply does the FS-3080B require?

The supplied specification lists AC 220 V ±10%. Confirm the power frequency and plug configuration with the manufacturer before installation.
