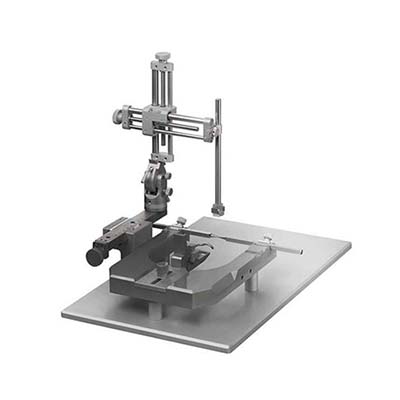

ZH-BL Small Animal Brain Stereotaxic Apparatus

Product Introduction

The ZH-BL Small Animal Brain Stereotaxic Apparatus is a precision positioning instrument designed for neuroscience, neuroanatomy, neurophysiology, neuropharmacology, and neurosurgery research involving small laboratory animals. Using skull surface landmarks as reference points, it enables three-dimensional positioning of specific brain regions and neural structures.

The apparatus supports procedures such as microinjection, neural stimulation, lesioning, and guided positioning. It can be used in studies involving Parkinson's disease models, epilepsy models, brain tumor models, learning and memory, brain stem cell transplantation, and cerebral ischemia.

With a reading accuracy of 0.1 mm, multidirectional adjustment, lockable rotation, and a wear-resistant U-shaped base, the ZH-BL provides precise and stable positioning for laboratory research. Optional animal adapters and compatibility with accessories such as micro-injection pumps, micro-cameras, and skull drills help accommodate different experimental requirements.

Performance Features

•  Precision positioning: Three-dimensional movement with a specified reading accuracy of 0.1 mm.

•  Wide operating range: The operating arm provides up to 80 mm of movement in the vertical, left-right, and front-rear directions.

•  Flexible rotation: Supports 360° horizontal rotation and 180° vertical rotation, with locking at the required position.

•  Multiple animal adapters: Optional adapters are available for rats, mice, birds, cats, rabbits, geckos, and guinea pigs.

•  Laser scale and open U-shaped base: Improve scale visibility and reading convenience.

• Stable adjustment mechanism: Double-headed screw design supports smooth and stable operation.

• Wear-resistant construction: Special surface treatment improves wear resistance and helps maintain cleanliness.

•  Extended base plate: The 400 × 255 mm base plate accommodates a variety of animal research setups.

• Operational safety: A vertical-direction indicator helps prevent incorrect operation.

• Independent locking controls: Separate vertical locking and positioning knobs support precise adjustment at different angles.

•  Ergonomic scale design: Specially processed scale components help reduce reading fatigue.

•  Secure animal head fixation: Curved animal adapter design helps fit and stabilize the animal's head.

•  Convenient lever locking: Pressure-plate locking mechanism supports straightforward operation.

•  Accessory compatibility: Can be used with a micro-injection pump, micro-camera, and skull drill.

Working Principle

The ZH-BL stereotaxic apparatus uses a three-dimensional coordinate-based positioning method. The operator identifies skull surface landmarks, such as the bregma, as reference points and adjusts the operating arm along the vertical, left-right, and front-rear axes.

The scale system provides position readings, while the adjustable rotation mechanism allows the operating arm to be oriented as required and locked in place. Once the target coordinates are established, compatible instruments can be guided toward the selected neural structure for procedures such as injection, stimulation, or other experimental operations.

Technical Parameters

Note: The source does not specify the overall instrument dimensions, weight, materials, or exact adapter model numbers.

Application Scenarios

•  Neuroanatomy research: Locate specific brain regions and neural structures.

• Neurophysiology studies: Support targeted stimulation and experimental positioning.

• Neuropharmacology experiments: Guide localized delivery of research compounds.

• Parkinson's disease models: Assist with stereotaxic procedures used in animal model development.

•  Epilepsy research: Support targeted brain-region procedures in experimental models.

• Brain tumor studies: Enable precise positioning for relevant animal experiments.

• Learning and memory research: Support studies involving specific neural structures.

• Brain stem cell transplantation: Assist with positioning for targeted experimental procedures.

•  Cerebral ischemia research: Support stereotaxic operations in animal models.

• Small animal laboratory research: Accommodate multiple animal types through optional adapters.

ZH-BL vs. General Small Animal Stereotaxic Apparatus

Frequently Asked Questions

Q1: What is the ZH-BL small animal brain stereotaxic apparatus used for?

It is used to position specific brain regions in small laboratory animals for neuroscience and related research, including microinjection, stimulation, lesioning, and guided positioning.

Q2: What is its reading accuracy?

The specified reading accuracy is 0.1 mm.

Q3: Which animals can be accommodated?

Optional adapters are available for rats, mice, birds, cats, rabbits, geckos, and guinea pigs. Adapter availability should be confirmed for the intended configuration.

Q4: How much can the operating arm move?

The operating arm can move up to 80 mm in the vertical, left-right, and front-rear directions.

Q5: Can the operating arm rotate?

Yes. It supports 360° horizontal rotation and 180° vertical rotation, with the ability to lock the position as required.

Q6: What is the advantage of the laser scale and open U-shaped base?

This design makes scale readings more convenient and improves access around the operating area.

Q7: What accessories can be used with the apparatus?

The apparatus can be used with a micro-injection pump, micro-camera, and skull drill.

Q8: What research applications does it support?

Applications include Parkinson's disease and epilepsy animal models, brain tumor studies, learning and memory research, brain stem cell transplantation, and cerebral ischemia research.

Q9: How does the apparatus help stabilize the animal's head?

Its animal adapter uses a curved design to provide closer head fixation. The lever locking mechanism uses a pressure-plate structure for convenient operation.
