PBSV4.2 Bladder Scanner

Product Introduction

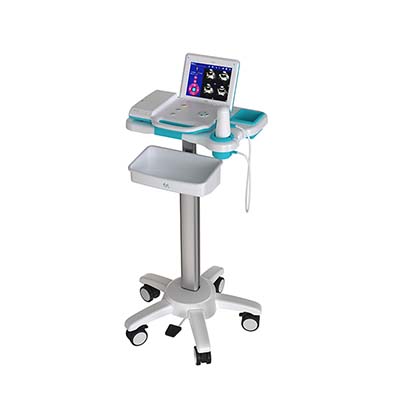

The PBSV4.2 Bladder Scanner is a non-invasive ultrasound device designed for rapid measurement of bladder urine volume. Consisting of a host unit and an ultrasound probe, the system scans the patient's bladder, identifies its position and contour, and calculates the estimated urine volume without requiring catheterization.

Featuring real-time bladder imaging, 24 scanning sections, and multiple patient measurement modes, the PBSV4.2 supports convenient bedside bladder assessment. Its 8.4-inch TFT color touchscreen, manual contour correction, and integrated case management functions provide an intuitive workflow for healthcare professionals.

The bladder scanner is suitable for clinical assessment of patients with urinary retention, prostatic hyperplasia, neurogenic bladder, and other conditions requiring bladder volume evaluation. It can also support bladder function training, intermittent catheterization management, and residual urine volume assessment alongside urine flow rate testing.

Performance Features

• Non-Invasive Ultrasound Measurement: Measures bladder urine volume externally without catheter insertion.

•  Rapid Bedside Operation: Supports convenient bladder volume assessment at the patient's bedside.

•  Real-Time Bladder Imaging: Displays bladder shape, position, and scanned image boundaries.

•  24 Scanning Sections: Uses multiple scanning sections to support bladder contour identification and volume calculation.

• Multiple Patient Modes: Provides male, female, pediatric, and phantom measurement modes.

• Flexible Scanning Options: Includes expert mode and simple mode for different operating requirements.

• Manual Contour Correction: Allows operators to manually adjust the identified bladder contour.

• Large Touchscreen Display: Equipped with an 8.4-inch TFT color LCD touchscreen and physical keyboard.

•  Case and Image Storage: Stores up to 100 cases and 1,200 images, with browsing and export functions.

• Multiple Output Interfaces: Supports thermal printer, USB, and Bluetooth communication interfaces.

• Portable Rechargeable Power: Uses four general-purpose 18650 rechargeable lithium batteries.

•  Bionic Model Training: Supports training and operational practice using a bionic bladder model.

Working Principle

The PBSV4.2 bladder scanner uses ultrasound technology to examine the bladder non-invasively. The probe transmits ultrasound signals into the lower abdominal region and receives echoes reflected by internal anatomical structures.

The host processes these signals to identify the bladder boundary and generate real-time bladder images. By analyzing the bladder contour across 24 scanning sections, the system calculates the estimated urine volume and displays the result on the touchscreen.

Operators can review the bladder image, position prompts, and measurement results. If necessary, the manual correction function allows adjustment of the identified bladder contour. Measurement data and images can then be stored, browsed, exported, or transmitted through the available interfaces.

Technical Parameters

Application Scenarios

The PBSV4.2 bladder scanner is suitable for non-invasive bladder volume assessment in various clinical departments:

•   Urology: Bladder volume evaluation and assessment of urinary retention.

•   Emergency Department: Rapid bedside bladder volume measurement.

•  Rehabilitation Department: Support for bladder function training and urinary management.

•   Operating Room: Bladder assessment during perioperative care.

•   Internal Medicine: Non-invasive evaluation of bladder urine volume.

•   Neurology: Assessment support for patients with neurogenic bladder.

•  Obstetrics and Gynecology: Bladder volume assessment in relevant clinical settings.

• Male Specialty Clinics: Evaluation support for patients with prostatic hyperplasia and urinary difficulties.

• Anesthesiology: Bedside bladder assessment during perioperative management.

•   Geriatrics: Urine volume evaluation in older patients.

•   Intensive Care Unit (ICU): Non-invasive bedside bladder volume assessment.

Product Comparison

Frequently Asked Questions (FAQ)

1. What is the PBSV4.2 bladder scanner used for?

The PBSV4.2 is used to measure bladder urine volume non-invasively through ultrasound scanning. It supports clinical assessment of urinary retention, prostatic hyperplasia, neurogenic bladder, and other conditions requiring bladder volume evaluation.

2. Is the PBSV4.2 bladder scanner non-invasive?

Yes. It uses an external ultrasound probe to scan the bladder without requiring catheter insertion.

3. What is the measurement range of the PBSV4.2?

The bladder volume measurement range is 0–999 mL, with a specified allowable measurement error of ≤±15%.

4. Which measurement modes are available?

The scanner provides male, female, pediatric, and phantom measurement modes. It also offers expert and simple scanning modes.

5. Does the PBSV4.2 display real-time bladder images?

Yes. It displays real-time bladder shape images, scanned image boundaries, and position prompts to assist the operator during measurement.

6. Can the bladder contour be corrected manually?

Yes. The device includes a manual correction function that allows operators to adjust the identified bladder contour when necessary.

7. How many cases and images can the scanner store?

The PBSV4.2 can store up to 100 cases and 1,200 images. It also supports case browsing and data export.

8. What output and communication interfaces are available?

The scanner provides a thermal printer interface, USB interface, and Bluetooth communication interface.

9. What power supply does the PBSV4.2 use?

It uses an internal rechargeable battery system consisting of four general-purpose 18650 lithium batteries. The supplied specification lists a battery voltage of 3.7 V.
