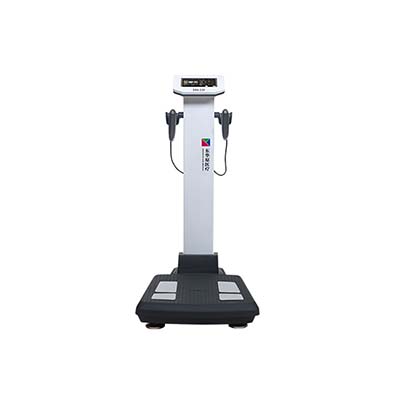

DBA-210 Body Composition Analyzer

Product Introduction

The DBA-210 Body Composition Analyzer is a professional body composition measurement device designed to evaluate body composition and provide comprehensive health assessment reports. Using an 8-point contact electrode measurement method and three measurement frequencies (5, 50, and 250 kHz), it analyzes key body composition indicators, including body water, protein, minerals, body fat, muscle mass, and lean body mass.

The DBA-210 completes a measurement in less than one minute and features a 7-inch color touchscreen with an intuitive operating interface. Its ergonomic design accommodates users with heights from 90 to 200 cm, while its body composition assessment model is developed with reference to the physique characteristics of the Chinese population.

Supporting Android-based operation, member management software connectivity, and multiple report printing options, the DBA-210 is suitable for fitness centers, health management facilities, rehabilitation centers, and professional body composition assessment environments.

Performance Features

• 8-Point Contact Electrode Technology: Uses an eight-point electrode configuration for body composition assessment.

•  Multifrequency Measurement: Operates at 5, 50, and 250 kHz to evaluate multiple body composition indicators.

• Fast Measurement: Completes a body composition test in less than one minute.

• Comprehensive Body Analysis: Measures body water, protein, minerals, body fat, muscle mass, skeletal muscle mass, and other indicators.

•  Ergonomic Design: Designed for comfortable measurement of users between 90 and 200 cm in height.

• Chinese Population-Oriented Assessment: Provides body composition reports developed with reference to Chinese physique characteristics.

•  7-Inch Touchscreen: Features an 800 × 480 resolution color LCD touchscreen with a straightforward operating interface.

•  Android Operating System: Supports Android-based operation and general A4 report printing.

•  Flexible Printing Options: Compatible with special report paper, standard A4 paper, and an optional thermal printer.

•   Member Management Connectivity: Can connect with member management software to organize and manage measurement records.

•   Integrated Health Assessment: Provides body shape, nutrition, muscle, and weight-control evaluations, together with exercise and nutrition recommendations.

Working Principle

The DBA-210 uses bioelectrical impedance analysis (BIA) technology with an 8-point contact electrode configuration. During measurement, a low-level electrical signal is introduced through the contact electrodes, and the instrument measures the body's electrical impedance at three frequencies: 5, 50, and 250 kHz.

Because different body tissues have different electrical properties, the measured impedance data can be processed to estimate body composition indicators such as total body water, lean body mass, muscle mass, and body fat mass.

The analyzer combines the measurement results with its body composition assessment model to generate a comprehensive report. The touchscreen displays the results, while the built-in software supports data management and report printing.

Technical Parameters

Application Scenarios

The DBA-210 body composition analyzer is suitable for professional body composition assessment and health management in various settings:

• Fitness Centers and Gyms: Evaluate body fat, muscle mass, and weight-control progress.

• Health Management Centers: Provide comprehensive body composition assessments and health reports.

• Rehabilitation Centers: Monitor changes in muscle mass and body composition during rehabilitation programs.

•  Nutrition Consulting Centers: Support nutrition evaluation and personalized dietary planning.

• Sports Training Facilities: Assess body composition and support exercise program development.

• Medical and Wellness Facilities: Provide supplementary body composition data for health assessment.

• Membership-Based Fitness Organizations: Connect with member management software to track individual measurement records.

Product Comparison

Frequently Asked Questions (FAQ)

1. What is the DBA-210 body composition analyzer used for?

The DBA-210 is used to assess body composition, including body fat, muscle mass, body water, protein, minerals, and other health-related indicators. It also provides body shape, nutrition, and muscle evaluations.

2. What measurement technology does the DBA-210 use?

It uses an 8-point contact electrode method based on bioelectrical impedance analysis (BIA), with measurement frequencies of 5, 50, and 250 kHz.

3. How long does a body composition test take?

A measurement can be completed in less than one minute.

4. What is the weight measurement range?

The specified weight measurement range is 5–250 kg.

5. What is the applicable user height range?

The ergonomic design accommodates users with heights between 90 and 200 cm.

6. What body composition indicators can the DBA-210 measure?

It provides indicators including total body water, protein, inorganic salts, body fat mass, muscle mass, lean body mass, skeletal muscle mass, BMI, body fat percentage, waist-to-hip ratio, and visceral fat area.

7. Can the DBA-210 generate exercise and nutrition recommendations?

Yes. Its assessment functions include weight control, body shape determination, nutrition evaluation, muscle evaluation, exercise prescriptions, and nutrition prescriptions.

8. What printing options are available?

The analyzer supports special body composition report paper and standard A4 paper. A thermal printer can also be used to print measurement results.

9. Can the DBA-210 manage member measurement records?

Yes. It can connect with member management software to support the organization and management of individual measurement results.
