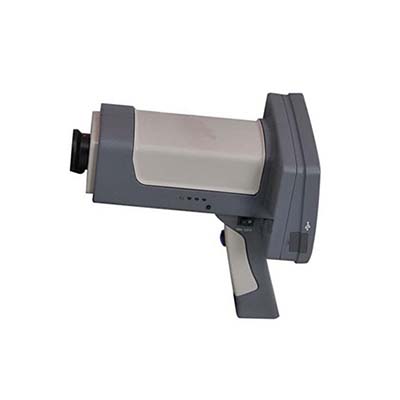

NIRMagic 1210 Handheld Near-Infrared Spectrum Analyzer
Product Introduction
The NIRMagic 1210 Handheld Near-Infrared Spectrum Analyzer is a portable analytical instrument designed for rapid, nondestructive qualitative and quantitative analysis of solid samples. Suitable for fibers, sheet materials, granules, powders, and other compatible sample types, it supports on-site material identification and quality assessment without requiring destructive sample preparation for every measurement.
Operating across a wavelength range of 950–1650 nm, the NIRMagic 1210 combines an embedded control system, a 4.3-inch touchscreen, built-in battery power, and onboard chemometric analysis. Its compact handheld design makes it suitable for field inspections, production quality control, and laboratory testing. Optional measurement accessories accommodate samples with different shapes and physical characteristics.
Performance Features
1. Nondestructive sample analysis: Supports qualitative identification and quantitative analysis of compatible solid samples while minimizing sample damage.
2. Rapid measurement: Completes spectral analysis in ≤5 seconds, helping improve testing efficiency.
3. Portable handheld design: Lightweight construction and a built-in high-capacity battery support mobile and on-site testing.
4. Integrated analytical software: The embedded operating system supports spectral measurement, chemometric analysis, and test-result queries without requiring a separate computer for basic operation.
5. Self-checking and calibration: Built-in checking and calibration functions help maintain measurement reliability.
6. Flexible sample handling: Optional measurement accessories support different sample shapes and physical forms, including fibers, sheets, granules, and powders where compatible.
7. Multiple analytical indicators: Supports simultaneous analysis of up to 12 indicators, subject to the installed calibration models.
8. Large data capacity: Stores up to 2,000 spectra and 10,000 analysis results, organized into 99 groups according to the supplied specifications.
9. Touchscreen operation: A 4.3-inch LCD provides a convenient interface for measurement and data review.
10. USB communication: The USB 2.0 interface supports data communication with compatible external systems.
Working Principle
The NIRMagic 1210 uses near-infrared spectroscopy to analyze the interaction between near-infrared light and a sample. Different chemical compositions and physical characteristics produce different spectral responses within the instrument's 950–1650 nm wavelength range.
The instrument collects spectral information and processes it using embedded chemometric algorithms. Qualitative analysis can help distinguish materials or identify sample categories, while quantitative analysis estimates selected properties using calibration models developed for the relevant sample types.
Its built-in self-checking and calibration functions support routine instrument checks. Reliable quantitative results depend on suitable calibration models, sample consistency, measurement conditions, and validation against appropriate reference methods.
Technical Parameters
|
Parameter |
Specification |
|
Model |
NIRMagic 1210 |
|
Instrument type |
Handheld near-infrared spectrum analyzer |
|
Analysis type |
Qualitative and quantitative analysis |
|
Applicable samples |
Solid samples, including fibers, sheets, granules, and powders |
|
Wavelength range |
950–1650 nm |
|
Spectral resolution |
12.5 nm at 1000 nm |
|
Analysis time |
≤5 seconds |
|
Simultaneous analysis indicators |
Up to 12 |
|
Spectral storage |
2,000 spectra |
|
Analysis result storage |
10,000 results |
|
Data storage groups |
99 groups |
|
Storage capacity |
4 GB |
|
Light source service life |
18,000 hours |
|
Communication interface |
USB 2.0 |
|
Operating system |
Embedded control system |
|
Display |
4.3-inch LCD touchscreen |
|
Operating temperature |
5–40°C |
|
Humidity range |
5%–95% (confirm whether relative humidity and non-condensing conditions apply) |
|
Probe size |
40 mm |
|
Power supply |
DC 16.8 V, built-in battery |
|
Maximum battery endurance |
Up to 8 hours |
|
Dimensions |
200 × 143 × 200 mm |
|
Weight |
Approximately 0.85 kg |
Application Scenarios
• Textile and fiber identification: Supports material identification and classification of compatible textile fibers and related solid samples.
• Agricultural and agricultural by-product testing: Assists rapid screening and quality assessment of suitable agricultural materials.
• Fine chemical analysis: Supports identification and quantitative analysis of compatible chemical materials when appropriate calibration models are available.
• Pharmaceutical testing: Can be used for selected material identification and screening applications, subject to method validation and applicable regulatory requirements.
• Powder and granule inspection: Supports rapid analysis of compatible powdered and granular materials in manufacturing and quality-control workflows.
• Production quality control: Enables near-line or on-site screening of raw materials and finished products.
• Field inspection and material sorting: Portable operation supports mobile testing where transporting samples to a central laboratory is inconvenient.
• Research and development: Provides spectral data for material characterization and the development of application-specific chemometric models.
NIRMagic 1210 vs. Conventional Laboratory NIR Analyzers
|
Comparison Item |
NIRMagic 1210 Handheld Analyzer |
Conventional Benchtop NIR Analyzer |
|
Portability |
Handheld design for mobile testing |
Primarily designed for stationary use |
|
Sample measurement |
Supports compatible solid samples in different forms using suitable accessories |
Depends on sample compartment and accessory configuration |
|
Analysis time |
≤5 seconds |
Varies by instrument and method |
|
Onboard analysis |
Embedded spectral and chemometric analysis |
May use onboard software or an external computer |
|
Power supply |
Built-in battery, up to 8 hours endurance |
Often requires an external power supply |
|
Data storage |
4 GB; 2,000 spectra and 10,000 results as specified |
Depends on system configuration |
|
Sample preparation |
Supports nondestructive testing for compatible applications |
Depends on the sample and analytical method |
|
Best suited for |
Field screening, mobile inspection, and rapid material checks |
Routine laboratory analysis and applications requiring a fixed setup |
Note: Actual performance depends on the sample type, measurement accessory, calibration model, and testing conditions. Quantitative applications should be validated against an appropriate reference method.
Frequently Asked Questions
1. What is the NIRMagic 1210 handheld NIR analyzer used for?
It is designed for rapid, nondestructive qualitative and quantitative analysis of compatible solid samples, including fibers, sheet materials, granules, and powders.
2. What is the wavelength range of the NIRMagic 1210?
The instrument operates from 950 to 1650 nm, with a specified spectral resolution of 12.5 nm at 1000 nm.
3. How long does one analysis take?
The specified analysis time is no more than 5 seconds, supporting rapid material screening and quality inspection.
4. Can the NIRMagic 1210 analyze different sample shapes?
Yes. Optional measurement accessories are available for different sample shapes and physical forms. The appropriate accessory should be selected according to the sample and intended application.
5. Can the instrument perform quantitative analysis?
Yes. It supports both qualitative and quantitative analysis. Quantitative measurement of specific properties requires suitable calibration models developed and validated for the relevant sample types.
6. How many analytical indicators can it measure simultaneously?
The NIRMagic 1210 supports simultaneous analysis of up to 12 indicators, depending on the installed analytical models.
7. How long can the instrument operate on battery power?
The built-in battery supports a maximum endurance of up to 8 hours. Actual operating time may vary with usage and operating conditions.
8. How much data can the NIRMagic 1210 store?
The specifications list 4 GB of storage, 2,000 spectra, 10,000 analysis results, and 99 data groups.
9. Does the analyzer require a computer for routine operation?
Basic spectral measurement, chemometric analysis, and result queries can be performed through its embedded control system and touchscreen. A computer may be used for additional data processing or integration, depending on the application.
