EU-2200 UV-Visible Spectrophotometer
- PRODUCT DETAIL

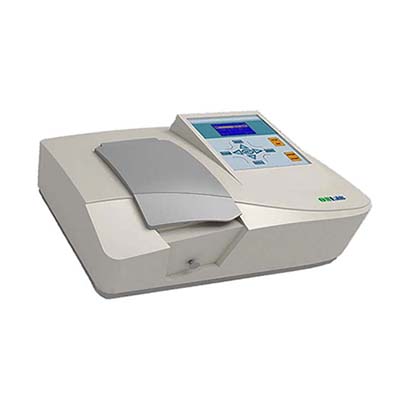

EU-2200 UV-Visible Spectrophotometer
Product Introduction
The EU-2200 UV-Visible Spectrophotometer is a single-beam analytical instrument designed for ultraviolet and visible light measurements across a wavelength range of 190–1100 nm. It supports transmittance, absorbance, and energy measurement modes, as well as quantitative analysis using coefficient-based calculations and standard curves.
The instrument combines a high-performance 1200 lines/mm diffraction grating, an imported silicon photodiode detector, and long-life tungsten and deuterium lamps. Automatic wavelength setting, light-source switching, dark-current correction, and blank correction help simplify routine laboratory operation.
With a large dot-matrix LCD, membrane-key interface, onboard data storage, and serial and USB connections, the EU-2200 is suitable for routine analytical testing, quality control, education, and research. Optional PC connectivity functions support time scanning, data processing, and report printing.
Performance Features
• Wide wavelength range: Covers 190–1100 nm for ultraviolet and visible spectroscopy.
• Multiple photometric modes: Measures transmittance, absorbance, and energy.
• Quantitative analysis: Supports coefficient methods and standard-curve analysis.
• Automatic operation: Provides automatic wavelength setting, light-source switching, dark-current correction, and blank correction.
• Reliable optical system: Uses a high-performance 1200 lines/mm grating and an imported silicon photodiode detector.
• Low stray light and noise: Supports reliable measurements across routine analytical applications.
• Dual light sources: Uses imported long-life tungsten and deuterium lamps.
• Convenient data storage: Stores multiple standard curves and test records, retaining data after power loss.
• User-friendly interface: Features a 128 × 64 dot-matrix LCD and membrane keys.
• Computer connectivity: Serial and USB interfaces support data transfer; optional PC functions include time scanning, data processing, and report printing.
• Durable construction: Features a thickened base plate and optical bracket for robust instrument support.
Working Principle
The EU-2200 operates using the principle of ultraviolet-visible spectrophotometry, measuring the interaction between light and a sample.
1. Light generation: Tungsten and deuterium lamps provide light for visible and ultraviolet measurements.
2. Wavelength selection: A 1200 lines/mm diffraction grating separates the light into individual wavelengths.
3. Sample measurement: Selected light passes through the sample, and the instrument measures the transmitted light intensity.
4. Signal conversion: The silicon photodiode detector converts the detected light into an electrical signal.
5.Photometric calculation: The instrument calculates transmittance, absorbance, or energy values.
6. Quantitative analysis: The coefficient method or standard-curve method can be used to determine sample concentrations.
7. Data processing: Results and standard curves can be stored internally and transferred to a computer. Optional PC functions provide time scanning and report generation.
Technical Specifications
|
Parameter |
Specification |
|
Model |
EU-2200 |
|
Optical Configuration |
Single beam |
|
Wavelength Range |
190–1100 nm |
|
Spectral Bandwidth |
4 nm; optional 2 nm |
|
Wavelength Accuracy |
±1.0 nm |
|
Wavelength Repeatability |
≤0.2 nm |
|
Photometric Range |
0–200%T, −0.3 to 3 A |
|
Photometric Accuracy |
±0.5%T |
|
Photometric Repeatability |
≤0.2%T |
|
Stray Light |
≤0.1%T |
|
Baseline Flatness |
±0.003 A |
|
Baseline Drift/Stability |
≤0.002 A/h at 500 nm, 0 A, measured 2 hours after power-on warm-up |
|
Noise |
±0.001 A peak-to-peak at 500 nm, measured 30 minutes after startup |
|
Monochromator |
High-performance 1200 lines/mm grating |
|
Detector |
Imported silicon photodiode |
|
Light Sources |
Imported long-life tungsten and deuterium lamps |
|
Display |
128 × 64 dot-matrix LCD |
|
Keyboard |
Membrane keys |
|
Interfaces |
Serial port and USB port |
|
Power Supply |
AC 90–250 V, 50/60 Hz |
|
Dimensions |
431 × 318 × 195 mm |
|
Weight |
16 kg |
|
Photometric Modes |
Transmittance, absorbance, energy |
|
Quantitative Methods |
Coefficient method and standard-curve method |
|
Automatic Functions |
Wavelength setting, light-source switching, dark-current correction, blank correction |
|
Optional PC Functions |
Time scanning, data processing, report printing |
Application Scenarios
The EU-2200 UV-Vis spectrophotometer is suitable for laboratories and organizations conducting routine spectrophotometric analysis.
• Chemical laboratories: Quantitative analysis of suitable chemical compounds and solutions.
• Pharmaceutical testing: Routine absorbance measurements and analytical research.
• Environmental laboratories: Spectrophotometric analysis of suitable water and environmental samples.
• Educational institutions: Teaching and experiments in analytical chemistry and spectroscopy.
• Industrial quality control: Routine testing of raw materials, intermediates, and finished products.
• Scientific research: UV-Vis measurements and optional time-dependent absorbance studies.
The specific application depends on the sample, analytical method, and any applicable testing requirements.
Comparison with Conventional UV-Vis Spectrophotometers
|
Feature |
EU-2200 |
Conventional Basic UV-Vis Spectrophotometer |
|
Wavelength Range |
190–1100 nm |
Varies by model |
|
Optical Configuration |
Single beam |
Single or double beam |
|
Standard Spectral Bandwidth |
4 nm; optional 2 nm |
Depends on configuration |
|
Wavelength Accuracy |
±1.0 nm |
Varies by model |
|
Photometric Modes |
Transmittance, absorbance, energy |
Depends on model |
|
Automatic Corrections |
Dark-current and blank correction |
Depends on model |
|
Light Sources |
Tungsten and deuterium lamps |
Depends on model |
|
Data Storage |
Multiple standard curves and test records |
Depends on model |
|
Connectivity |
Serial and USB |
Depends on model |
|
Time Scanning |
Available through optional PC function |
Depends on software |
|
User Interface |
Dot-matrix LCD and membrane keys |
Depends on model |
Frequently Asked Questions
Q1: What is the wavelength range of the EU-2200?
The EU-2200 covers 190–1100 nm, supporting ultraviolet and visible light measurements.
Q2: What is the standard spectral bandwidth?
The standard bandwidth is 4 nm, with an optional 2 nm configuration.
Q3: Which measurement modes does the instrument support?
It supports transmittance, absorbance, and energy measurement modes, together with coefficient-based and standard-curve quantitative analysis.
Q4: Does the EU-2200 automatically correct measurement conditions?
Yes. It supports automatic wavelength setting, light-source switching, dark-current correction, and blank correction.
Q5: Can the EU-2200 perform time scanning?
Time scanning, also called dynamic scanning, is listed as a PC-connected function. Confirm the required software and configuration when ordering.
Q6: Can measurement data be exported to a computer?
Yes. The instrument includes serial and USB interfaces for data connectivity. PC software can provide additional data processing and report-printing functions.
Q7: Which light sources and detector are used?
The instrument uses imported long-life tungsten and deuterium lamps and an imported silicon photodiode detector.
Q8: What are the dimensions and power requirements?
The instrument measures 431 × 318 × 195 mm, weighs 16 kg, and operates on AC 90–250 V at 50/60 Hz.
