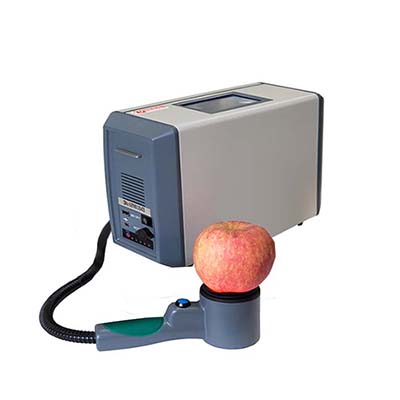

NIRMagic 1100B Portable Fruit NIR Near-Infrared Spectrometer
Product Introduction
The NIRMagic 1100B Portable Fruit NIR Spectrometer is designed for rapid, nondestructive fruit quality assessment directly in the field or at fruit handling sites. Using near-infrared spectroscopy across a wavelength range of 600–1100 nm, it supports qualitative discrimination and quality analysis without requiring destructive sample preparation for compatible applications.
With a CCD line-array detector, embedded control system, and 4.3-inch touchscreen, the NIRMagic 1100B provides convenient on-site measurement. Its built-in calibration and reference modules support routine instrument checks and measurement repeatability. A built-in battery enables up to 5 hours of continuous measurement, making the instrument suitable for orchard management, harvest assessment, fruit grading, disease-screening research, and storage and transportation quality monitoring.
Performance Features
1. Nondestructive fruit testing: Supports fruit quality assessment while keeping samples intact during measurement.
2. Rapid analysis: Delivers results in approximately 5 seconds, improving efficiency for on-site fruit screening.
3. Portable operation: A compact design and built-in battery support testing in orchards, warehouses, and fruit sorting facilities.
4. CCD line-array detector: Collects spectral information within the instrument's 600–1100 nm wavelength range.
5. Built-in calibration module: Supports periodic self-inspection to help maintain measurement accuracy.
6. Real-time reference module: Provides real-time referencing to help improve measurement repeatability.
7. Intelligent touchscreen control: The embedded control system and 4.3-inch LCD touchscreen simplify routine operation.
8. Multiple analytical indicators: Supports simultaneous analysis of up to 12 indicators, depending on available calibration models.
9. Data and spectral storage: Provides 8 GB of storage, supports 99 storage groups, and stores more than 2,000 spectra and more than 2,000 analysis results according to the supplied specifications.
10. Secondary development support: Supports application-specific software development and system integration, subject to available interfaces and development documentation.
Working Principle
The NIRMagic 1100B uses near-infrared spectroscopy to collect spectral information from fruit samples. When near-infrared light interacts with fruit tissue, its absorption and reflection characteristics are influenced by the sample's chemical composition and physical properties.
The CCD line-array detector captures the spectral response across 600–1100 nm. The embedded system processes the collected data and applies appropriate calibration models to support fruit classification and quality analysis.
The built-in calibration and reference modules assist with routine instrument checks and spectral referencing. Quantitative measurements of specific fruit quality attributes require suitable calibration models validated for the relevant fruit varieties, maturity levels, and testing conditions.
Technical Parameters
|
Parameter |
Specification |
|
Model |
NIRMagic 1100B |
|
Instrument type |
Portable fruit near-infrared spectrometer |
|
Detector |
CCD line-array detector |
|
Wavelength range |
600–1100 nm |
|
Wavelength accuracy |
0.2 nm |
|
Wavelength repeatability |
0.05 nm |
|
Analysis time |
≤5 seconds |
|
Simultaneous analysis indicators |
Up to 12 |
|
Display |
4.3-inch LCD touchscreen |
|
Operating system |
Embedded control system |
|
Communication interface |
USB 2.0 |
|
Storage capacity |
8 GB |
|
Storage groups |
99 groups |
|
Spectral storage |
More than 2,000 spectra |
|
Analysis result storage |
More than 2,000 results |
|
Light source power |
12 V / 20 W |
|
Light source service life |
More than 5,000 hours |
|
Operating temperature |
5–40°C |
|
Humidity range |
5%–95% (confirm relative humidity and non-condensing requirements) |
|
Power supply |
DC 12 V, built-in battery |
|
Continuous measurement time |
Up to 5 hours |
|
Dimensions |
310 × 210 × 120 mm |
|
Weight |
Not specified in the supplied data |
Application Scenarios
• Orchard management: Supports on-site fruit quality screening to assist crop monitoring and harvest planning.
• Harvest maturity assessment: Helps evaluate fruit samples using suitable calibration models before picking.
• Fruit grading and sorting: Enables rapid quality screening during post-harvest handling and classification.
• Disease-screening research: Provides spectral information that may support screening models for selected fruit abnormalities when validated models are available.
• Storage quality monitoring: Assists fruit quality checks during warehousing and storage management.
• Transportation and distribution: Supports inspection at collection points, packing facilities, and distribution centers.
• Agricultural research: Provides spectral measurements for developing and validating fruit quality analysis models.
NIRMagic 1100B vs. Conventional Fruit Quality Testing Methods
|
Comparison Item |
NIRMagic 1100B |
Conventional Destructive Testing |
|
Testing method |
Near-infrared spectral analysis |
Often uses chemical analysis or physical sample preparation |
|
Sample condition |
Nondestructive for compatible applications |
Sample may be cut, extracted, or consumed |
|
Analysis time |
≤5 seconds |
Varies with method and preparation |
|
Portability |
Designed for on-site testing |
Depends on equipment; many methods require laboratory facilities |
|
Calibration support |
Built-in calibration and reference modules |
Depends on analytical method and instrument |
|
Analytical indicators |
Up to 12 simultaneously, depending on calibration models |
Depends on the selected test method |
|
Data management |
8 GB storage, 99 groups, and more than 2,000 spectra/results as specified |
Depends on laboratory equipment and software |
|
Typical use |
Rapid screening and field quality assessment |
Reference analysis and confirmatory testing |
Note: NIR spectroscopy does not automatically measure every fruit quality attribute. Quantitative results for parameters such as soluble solids, maturity, or internal defects depend on suitable calibration models and validation for the intended application.
Frequently Asked Questions
1. What is the NIRMagic 1100B used for?
It is a portable near-infrared spectrometer designed for rapid, nondestructive fruit quality assessment, including orchard monitoring, harvest grading, and storage quality screening.
2. How long does one measurement take?
The specified analysis time is no more than 5 seconds, supporting rapid on-site testing.
3. What is the wavelength range of the NIRMagic 1100B?
The instrument operates from 600 to 1100 nm, with a specified wavelength accuracy of 0.2 nm and wavelength repeatability of 0.05 nm.
4. Can the instrument measure fruit sugar content or maturity?
It may support analysis of selected indicators, such as soluble solids or maturity, if suitable calibration models are available and validated for the relevant fruit types. Confirm supported indicators and model availability with the supplier.
5. How long can the NIRMagic 1100B operate on battery power?
The built-in battery supports up to 5 hours of continuous measurement. Actual runtime may vary depending on operating conditions.
6. How does the instrument support measurement consistency?
It incorporates a standard calibration module for periodic self-inspection and a reference module for real-time referencing, helping maintain measurement accuracy and repeatability.
7. How many indicators can be analyzed simultaneously?
The instrument supports simultaneous analysis of up to 12 indicators, depending on the installed calibration models.
8. How much data can the instrument store?
The supplied specifications list 8 GB of storage, 99 storage groups, more than 2,000 spectra, and more than 2,000 analysis results.
9. Can the NIRMagic 1100B be integrated into a customized fruit inspection system?
Yes. Secondary development is supported. Specific software interfaces, integration requirements, and development documentation should be confirmed with the supplier.
