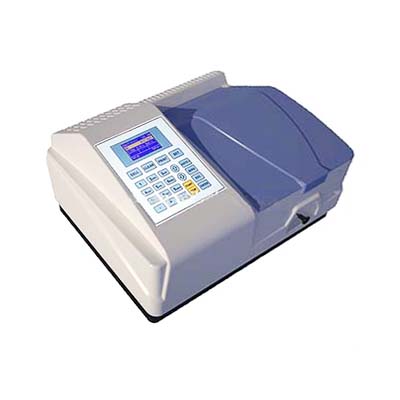

EU-2600D Double Beam UV/VIS Spectrophotometer
Product Introduction
The EU-2600D Double Beam UV/VIS Spectrophotometer is a laboratory analytical instrument designed for accurate ultraviolet and visible light absorption measurements. Its double-beam optical system helps compensate for blank variations and minimize measurement drift, making it suitable for long-term testing and routine laboratory analysis. Equipped with a high-quality holographic grating, a graphic LCD, and automatic wavelength setting, the instrument supports reliable quantitative measurements and standard curve analysis. Optional PC scanning software enables wavelength scanning and expanded data analysis for universities, research institutions, and quality control laboratories.
Performance Features
• Double-Beam Optical System: Helps reduce measurement drift and compensate for blank changes during testing.
• Wide Wavelength Range: Covers 190–1100 nm for ultraviolet and visible spectrophotometric analysis.
• High Measurement Accuracy: Provides wavelength accuracy of ±0.3 nm and low photometric error for routine analytical applications.
• Low Stray Light and Noise: Supports dependable absorbance and transmittance measurements.
• Automatic Operation: Features automatic wavelength setting, automatic blanking, and selectable high, medium, and low scanning speeds.
• Graphic LCD Display: The 128 × 64-dot LCD displays measurement data and curves directly on the instrument.
• Real-Time Data Storage: Stores measurement data and curves for convenient review.
• Convenient Lamp Replacement: Pre-aligned tungsten and deuterium lamps simplify replacement, and each lamp can be switched on or off independently.
• Flexible Connectivity: USB and RS232 interfaces support data transfer, while compatible mini serial and PC printers provide output options.
• Durable Construction: A reinforced baseboard and bracket provide structural stability for routine laboratory use.
Working Principle
The EU-2600D operates on the principle of UV-Visible absorption spectrophotometry. Light from tungsten and deuterium lamps passes through a monochromator equipped with a blazed holographic grating, which separates the light into selected wavelengths. The double-beam optical system measures the sample and reference light paths to help compensate for fluctuations in light intensity and changes in the blank. A silicon photodiode detects the transmitted light, and the instrument calculates absorbance or transmittance based on the measured signals. These results can be used for quantitative analysis, standard curve fitting, and concentration determination.
Technical Parameters
|
Parameter |
Specification |
|
Model |
EU-2600D |
|
Wavelength Range |
190–1100 nm |
|
Spectral Bandwidth |
2.0 nm |
|
Optical System |
Double beam; blazed holographic grating, 1200 lines/mm |
|
Wavelength Accuracy |
±0.3 nm |
|
Wavelength Repeatability |
≤0.2 nm |
|
Wavelength Setting |
Automatic; 0.1 nm resolution |
|
Photometric Range |
0–200%T, −0.3–3 A, 0–9999 C |
|
Photometric Accuracy |
±0.002 A (0–0.5 A); ±0.003 A (0.5–1 A); ±0.3%T (0–100%T) |
|
Photometric Repeatability |
≤0.001 A (0–0.5 A); ≤0.002 A (0.5–1 A); ≤0.2%T (0–100%T) |
|
Stray Light |
≤0.05%T at 220/360 nm |
|
Scan Speed |
High, medium, low; maximum 2000 nm/min |
|
Baseline Flatness |
±0.0015 A |
|
Stability |
±0.001 A/h at 500 nm, 0 A |
|
Noise |
≤0.2%T/3 min at 250/500 nm, 0%T; ≤0.5%T/3 min at 250/500 nm, 100%T |
|
Sample Compartment |
Accommodates cuvettes with 5–100 mm path lengths |
|
Detector |
Silicon photodiode |
|
Light Sources |
Pre-aligned tungsten lamp and deuterium lamp |
|
Display |
Graphic LCD, 128 × 64 dots |
|
Keypad |
22-key numeric membrane keypad |
|
Output Ports |
USB and RS232 |
|
Printer Support |
Mini serial printer and PC printer |
|
PC Software |
Optional PC scanning software |
|
Power Requirements |
AC 90–250 V, 50/60 Hz |
|
Dimensions |
490 × 390 × 280 mm |
|
Weight |
18 kg |
Application Scenarios
• University and Research Laboratories: Supports UV-Visible spectroscopy experiments, quantitative analysis, and scientific research.
• Quality Control Laboratories: Enables routine absorbance, transmittance, and concentration measurements.
• Chemical and Pharmaceutical Analysis: Assists with the quantitative determination of UV-absorbing and visible-light-absorbing compounds.
• Environmental Testing: Supports spectrophotometric methods for analyzing suitable water and environmental samples.
• Industrial Laboratories: Provides optical measurement capabilities for raw material inspection, product testing, and process quality control.
• Educational Laboratories: Helps students and researchers investigate absorption spectra and analytical chemistry principles.
EU-2600D vs. Conventional Single-Beam UV/VIS Spectrophotometers
|
Comparison Item |
EU-2600D Double Beam |
Conventional Single Beam |
|
Optical Configuration |
Double-beam optical system |
Single optical measurement path |
|
Blank Compensation |
Helps compensate for blank changes during measurement |
Typically requires separate blank measurement |
|
Drift Management |
Designed to reduce the effects of light-source fluctuations |
More dependent on measurement timing and instrument stability |
|
Wavelength Range |
190–1100 nm |
Depends on the model |
|
Wavelength Accuracy |
±0.3 nm |
Depends on the model |
|
Automatic Wavelength Setting |
Supported |
Depends on the model |
|
Data and Curve Storage |
Real-time storage supported |
Depends on the model |
|
PC Scanning |
Optional PC scanning software |
Depends on the model |
|
Typical Applications |
Long-duration testing, research, and routine quality control |
Routine analysis and general laboratory measurements |
Note: This comparison describes general instrument design differences. Actual performance depends on the specifications of the single-beam model used for comparison.
Frequently Asked Questions
1. What is the EU-2600D Double Beam UV/VIS Spectrophotometer used for?
It is used for ultraviolet and visible light absorption measurements, including absorbance, transmittance, concentration determination, standard curve analysis, and routine laboratory quality control.
2. What is the wavelength range of the EU-2600D?
The instrument covers a wavelength range of 190–1100 nm, supporting measurements across the ultraviolet and visible regions.
3. What are the advantages of its double-beam optical system?
The double-beam configuration helps compensate for blank variations and reduce the effects of optical drift, making the instrument suitable for extended testing and routine analytical work.
4. What is the spectral bandwidth of this spectrophotometer?
The EU-2600D has a spectral bandwidth of 2.0 nm, suitable for many general-purpose UV-Visible analytical applications.
5. Does the EU-2600D support wavelength scanning?
Yes. Wavelength scanning is supported through optional PC scanning software, which enables users to acquire and analyze spectral curves.
6. Can the instrument perform quantitative analysis?
Yes. It supports absorbance and transmittance measurements, concentration readings, and standard curve fitting using single- or dual-wavelength methods, as described in the product introduction.
7. Which light sources does the EU-2600D use?
It uses a tungsten lamp and a deuterium lamp to cover the visible and ultraviolet wavelength regions. Both lamps are pre-aligned and can be switched on or off independently.
8. What data output and printing options are available?
The instrument provides USB and RS232 interfaces and supports mini serial printers and PC printers. Optional PC scanning software is available for additional data processing.
9. What types of laboratories can use the EU-2600D?
It is suitable for university laboratories, scientific research institutions, industrial laboratories, and quality control departments working with compatible UV-Visible spectrophotometric methods.
