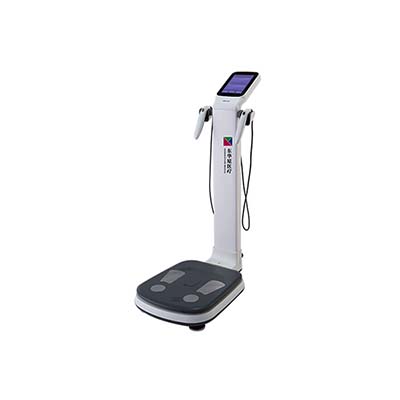

DBA-310 Body Composition Analyzer

Product Introduction

The DBA-310 Body Composition Analyzer is a multi-frequency body composition measurement system designed for fast, convenient body composition assessment. Using an 8-point contact electrode method and four measurement frequencies, it completes a test in less than one minute.

The analyzer evaluates multiple body composition indicators, including total body water, protein, inorganic salts, body fat mass, muscle mass, skeletal muscle mass, BMI, body fat percentage, waist-to-hip ratio, and visceral fat area. It also provides segmental muscle mass analysis, weight control recommendations, body shape classification, and nutritional and muscle assessments.

Designed with ergonomic considerations and an 8-inch Android touchscreen, the DBA-310 supports independent operation, member management software connectivity, and report printing on either dedicated report paper or standard A4 paper.

Performance Features

• 8-Point Contact Electrode Measurement: Supports comprehensive body composition assessment using an 8-point electrode configuration.

• Multi-Frequency Analysis: Operates at 1, 5, 50, and 250 kHz for multi-frequency body composition measurement.

•   Fast Testing: Completes a measurement in less than one minute.

•  Ergonomic Design: Designed to accommodate users with heights from 90 to 200 cm, supporting comfortable measurement.

• Chinese Population-Based Analysis: Developed with reference to body composition research on Chinese populations, providing reports tailored to this population.

•  8-Inch Android Touchscreen: Features an intuitive interface for convenient operation and result viewing.

•  Member Management Connectivity: Can connect to member management software for organizing and managing measurement records.

•  Flexible Report Printing: Supports dedicated report paper and standard A4 paper, helping reduce printing costs.

•  Multiple Report Types: Provides body composition reports and dedicated children's reports.

Working Principle

The DBA-310 uses bioelectrical impedance analysis (BIA) technology with an 8-point contact electrode configuration. During measurement, a low-level electrical signal passes through the body, and the instrument measures the resulting electrical impedance at different frequencies.

By analyzing the impedance data together with relevant user information, the system estimates body composition parameters such as total body water, body fat mass, muscle mass, and lean body mass. The software then generates a comprehensive assessment report, including segmental muscle analysis and other body composition indicators.

Technical Parameters

Application Scenarios

The DBA-310 Body Composition Analyzer is suitable for body composition assessment and health management in:

• Hospitals and Medical Institutions: Supporting body composition assessments and health evaluation.

•   Physical Examination Centers: Providing body composition data as part of routine health examinations.

•  Fitness Centers and Gyms: Monitoring body fat, muscle mass, and other body composition indicators.

•   Health Management Centers: Supporting member records and ongoing body composition tracking.

•  Nutrition and Wellness Centers: Providing data for nutritional and body composition assessments.

• Children's Health Assessment: Supporting dedicated children's body composition reports.

Product Comparison

Frequently Asked Questions (FAQ)

1. What is the DBA-310 Body Composition Analyzer used for?

It is designed to assess body composition indicators such as body fat mass, muscle mass, skeletal muscle mass, total body water, BMI, and visceral fat area.

2. How does the DBA-310 measure body composition?

It uses an 8-point contact electrode method based on bioelectrical impedance analysis (BIA), with four measurement frequencies: 1, 5, 50, and 250 kHz.

3. How long does one measurement take?

A measurement can be completed in less than one minute.

4. What is the applicable height and weight range?

The designed height range is 90–200 cm, and the weight measurement range is 5–250 kg.

5. Does the analyzer provide segmental muscle analysis?

Yes. The DBA-310 supports segmental muscle mass measurement and provides additional body composition assessments.

6. Can the DBA-310 print reports on standard A4 paper?

Yes. It supports both dedicated report paper and standard A4 paper, offering a flexible and economical printing option.

7. Can the analyzer connect to member management software?

Yes. It can connect to a member management program to help organize and manage users' measurement results.

8. Does the DBA-310 support children's body composition reports?

Yes. The system supports both general body composition reports and dedicated children's reports.
