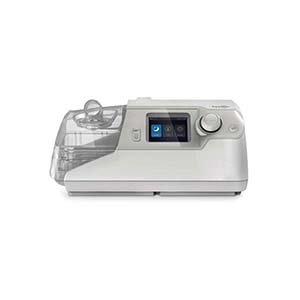

CA720 Continuous Positive Airway Pressure Ventilator (Single-Level)

Product Introduction

The CA720 Continuous Positive Airway Pressure (CPAP) Ventilator is a single-level positive airway pressure device designed for sleep breathing therapy. Supporting both CPAP and APAP treatment modes, it provides continuous or automatically adjusted positive airway pressure to support breathing during sleep.

Developed with a focus on noise reduction and user comfort, the CA720 integrates an independently developed high-performance fan, intelligent respiratory sensing technology, and advanced motor control algorithms. Its i-Sense intelligent sensing algorithm detects subtle changes in breathing and dynamically adjusts treatment pressure according to respiratory conditions.

The device also features a preheating humidification system, adjustable heated tubing, SD card data storage, cloud-based data management, and Bluetooth connectivity with compatible pulse oximeters. These functions provide a comprehensive solution for sleep respiratory therapy and treatment data management.

Performance Features

•  CPAP and APAP Modes: Supports continuous positive airway pressure and automatic positive airway pressure therapy.

• Low-Noise Operation: Optimized fan and airflow duct design help reduce operating noise, with a specified noise level of ≤29 dB.

•  Intelligent Respiratory Sensing: The i-Sense algorithm detects respiratory changes in real time and dynamically adjusts treatment pressure.

•  High-Performance Fan: Independently developed fan technology is designed to provide smoother airflow and a more comfortable breathing experience.

•  Heated Humidification: Integrated preheating and humidification help deliver warm, humidified airflow throughout treatment.

•  Five-Level Humidification Adjustment: Provides five adjustable temperature and humidity settings.

•   Advance Preheating: Supports preheating up to one hour before treatment.

• Adjustable Heated Tubing: Optional heated tubing with a configurable temperature range of 16–30°C.

•   Delay Pressure Boost: Adjustable delay boost function from 5 to 45 minutes.

•  Adaptive Leak Compensation: Automatically adjusts the baseline in response to air leakage, helping maintain treatment synchronization and respiratory event recognition.

• Respiratory Event Recognition: Identifies apnea-hypopnea events, airflow limitation, central sleep apnea, Cheyne-Stokes respiration, and Biot's breathing.

• Bluetooth Oximeter Connectivity: Can connect wirelessly to a compatible pulse oximeter and display SpO₂ data.

•   Long-Term Data Management: Stores approximately two years of usage data on an SD card and supports connection to Hepule Smart Health Cloud for long-term data storage.

Working Principle

The CA720 delivers positive airway pressure through a breathing circuit and compatible nasal mask or nasal pillow interface. In CPAP mode, the device supplies continuous pressure to help maintain airway patency during sleep. In APAP mode, its intelligent sensing system monitors respiratory patterns and adjusts pressure within the configured treatment range.

The i-Sense algorithm processes signals from high-precision sensors to identify respiratory events and changes in airflow. When breathing conditions change, the system dynamically adjusts pressure to provide responsive therapy.

The integrated humidification system heats and humidifies the delivered airflow to improve breathing comfort. Adaptive leak compensation helps account for mask or circuit leakage, supporting pressure delivery and respiratory event detection.

Treatment data can be recorded on an SD card and transferred to the Hepule Smart Health Cloud when connected. Bluetooth connectivity also enables compatible pulse oximeter data, including SpO₂, to be displayed.

Technical Parameters

Application Scenarios

The CA720 CPAP Ventilator is designed for sleep breathing therapy and related respiratory care applications, including:

•  Obstructive Sleep Apnea Management: Provides positive airway pressure therapy for appropriately diagnosed obstructive sleep apnea.

•  Sleep Respiratory Therapy: Supports CPAP and APAP treatment during sleep.

• Snoring-Related Respiratory Care: Can be used in the management of snoring associated with sleep-disordered breathing, following clinical assessment.

• Home Respiratory Care: Supports prescribed sleep therapy with humidification and adjustable comfort settings.

•  Sleep Clinics and Respiratory Departments: Provides a device platform for sleep breathing therapy and treatment data review.

• Long-Term Therapy Data Management: Supports SD card recording and cloud-based data storage for treatment monitoring.

Product Comparison

Frequently Asked Questions (FAQ)

1. What is the CA720 CPAP Ventilator used for?

The CA720 is designed for positive airway pressure therapy during sleep. It supports CPAP and APAP modes and is intended for sleep-related breathing conditions such as obstructive sleep apnea when prescribed by a healthcare professional.

2. What is the difference between CPAP and APAP modes?

CPAP delivers continuous positive airway pressure at a prescribed setting, while APAP automatically adjusts pressure within a configured range according to detected breathing conditions.

3. What is the pressure range of the CA720?

The specified treatment pressure range is 4–20 cmH₂O.

4. How does the i-Sense intelligent sensing algorithm work?

It uses real-time sensor information to identify subtle respiratory changes and dynamically adjust treatment pressure in APAP mode.

5. Does the CA720 include a humidifier?

Yes. It features an integrated humidification system with five adjustment levels and a preheating function that can be activated up to one hour before treatment.

6. Can the CA720 connect to a heated breathing tube?

Yes. Optional heated tubing is supported, with an adjustable temperature range of 16–30°C.

7. What respiratory events can the CA720 recognize?

The device identifies apnea-hypopnea events, airflow limitation, central sleep apnea, Cheyne-Stokes respiration, and Biot's breathing.

8. How long can treatment data be stored?

The SD card can store approximately two years of usage data. The device can also connect to Hepule Smart Health Cloud for long-term data storage.

9. Can the CA720 display blood oxygen saturation?

Yes. It supports wireless connection to a compatible Bluetooth pulse oximeter and can display SpO₂ data.
