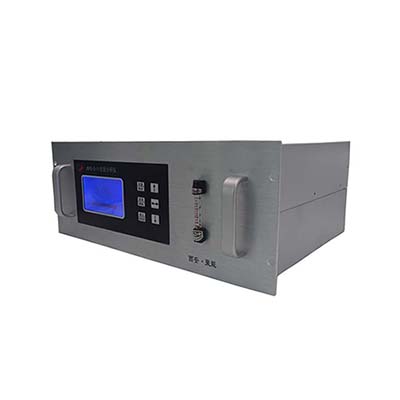

YMJN-O-11 High Standard Exhaust Gas Oxygen Analyzer

Product Introduction

The YMJN-O-11 High Standard Exhaust Gas Oxygen Analyzer is designed for oxygen concentration measurement in industrial gases, combustion processes, and laboratory applications. Featuring an anti-corrosion sensor, cross-interference resistance, and advanced digital signal processing, it supports reliable oxygen monitoring in demanding operating environments.

With a measuring range of 0–100% oxygen, a response time of 15 seconds or less, and selectable communication interfaces, this industrial oxygen analyzer is suitable for combustion optimization, process monitoring, and gas composition analysis in power plants, cement production, metallurgy, chemical manufacturing, and research laboratories.

Performance Features

1. Anti-Corrosion Sensor: Designed to improve sensor durability in suitable industrial gas environments.

2. Cross-Interference Resistance: Helps reduce the influence of interfering gas components on oxygen measurement.

3. Advanced Digital Processing: Supports stable signal processing and reliable oxygen concentration monitoring.

4.Multiple Alarm Outputs: Supports audible, visual, display, relay, and message-based alerts, according to the configured system.

5. Wide Measuring Range: Covers 0–100% oxygen, with alternative ranges available according to application requirements.

6. Fast Response: T90 response time of ≤15 seconds enables timely process monitoring.

7. Flexible Signal Output: Provides a selectable 0–20 mA or 4–20 mA current output.

8.Digital Communication: Supports selectable RS232 or RS485 communication interfaces.

9. Industrial Process Compatibility: Suitable for combustion control, oxygen concentration monitoring, and laboratory gas analysis.

Working Principle

The YMJN-O-11 measures oxygen concentration in a gas sample using its oxygen sensing system and digital processing electronics. The sensor responds to oxygen in the sample, and the instrument processes the resulting signal to calculate and display oxygen concentration.

The analyzer can transmit measurement data through its analog current output or a selectable RS232/RS485 interface. Configured upper- and lower-limit alarm outputs can be used to notify operators when oxygen concentration exceeds predefined thresholds.

The specific sensing technology is not provided in the supplied specifications. Sensor compatibility, sample conditioning requirements, and suitability for particular exhaust gas compositions should therefore be confirmed with the manufacturer.

Technical Parameters

Note: Accuracy and repeatability are reproduced from the supplied specifications. Confirm the exact interpretation of repeatability and the applicable measurement conditions with the manufacturer.

Application Scenarios

•  Thermal Power Plants: Monitoring combustion oxygen to support adjustment of the air-to-fuel ratio and improve combustion control.

• Cement Plants: Measuring oxygen in combustion-related process gases to support kiln and combustion management.

• Metallurgical Plants: Monitoring oxygen concentration in suitable industrial process and exhaust gas streams.

•  Chemical and Fertilizer Plants: Measuring oxygen concentration for process monitoring and operational control.

•  Hydrogen Industry: Supporting oxygen analysis in compatible gas streams, subject to sample composition and instrument suitability.

• Laboratory Combustion Testing: Measuring oxygen content during combustion experiments and gas analysis.

•  Biological and Medical Research: Supporting oxygen-related experimental studies where the gas composition and measurement setup are compatible with the analyzer.

YMJN-O-11 vs. Conventional Oxygen Analyzers

Frequently Asked Questions (FAQ)

1. What is the YMJN-O-11 High Standard Exhaust Gas Oxygen Analyzer used for?

It is designed to measure oxygen concentration in industrial gas streams and laboratory samples, supporting combustion optimization, process monitoring, and gas analysis.

2. What is the oxygen measurement range?

The standard specified range is 0–100% oxygen. Alternative measurement ranges can be selected according to the application.

3. How accurate is the YMJN-O-11?

The specified accuracy is ≤ ±1% of full scale (FS). For a 0–100% FS range, this corresponds to ±1 percentage point of oxygen concentration.

4. How quickly does the analyzer respond?

The specified T90 response time is 15 seconds or less.

5. Does the analyzer support analog and digital outputs?

Yes. It supports a selectable 0–20 mA or 4–20 mA current output and an RS232 or RS485 communication interface.

6. Can the YMJN-O-11 be used for combustion control?

Yes. It is suitable for oxygen monitoring in combustion-related processes at thermal power plants, cement plants, and metallurgical facilities, provided the sample conditions meet the instrument requirements.

7. What are the installation requirements?

Install the analyzer horizontally in an environment with a temperature of 5–45°C and relative humidity of 0–85%. Avoid direct sunlight, vibration, shock, and strongly corrosive gases.

8. Does the analyzer have alarm functions?

Yes. It supports upper- and lower-limit passive relay outputs. Audible, visual, display, and message-based alerts depend on the supplied configuration.

9. Can it measure oxygen in any exhaust gas?

Not necessarily. Gas composition, corrosive components, moisture, pressure, temperature, and sample conditioning can affect sensor performance. Confirm compatibility with the manufacturer before measuring a specific exhaust gas.
