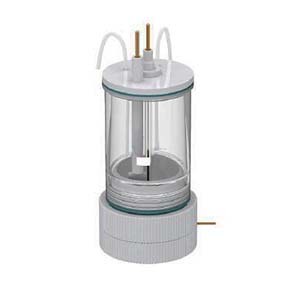

C003 Multifunctional Electrolytic Cell

Product Item: dhx019
Category: Laboratory electrolysis cell and electrode
Views: 1351
Supply Ability:50/month
Port:SHENZHEN
Model Number:C003
Payment Terms:T/T ,paypal
price: Inquiry

  • PRODUCT DETAIL

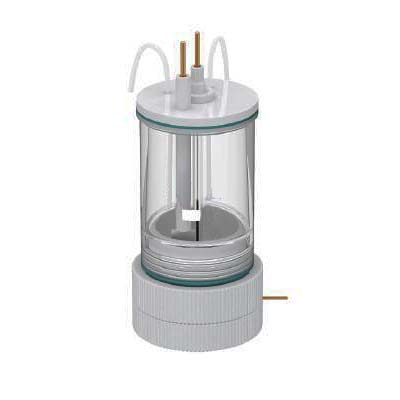

C003 Multifunctional Electrolytic Cell

 Product Introduction

The C003 Multifunctional Electrolytic Cell is a versatile laboratory electrochemical testing system designed for a wide range of electrochemical research and experimental applications. It features a high-borosilicate glass cell body and a chemically resistant PTFE cover, providing a practical and flexible experimental environment.

The C003 is equipped with a detachable sheet-shaped working electrode, making installation, removal, and sample handling more convenient. Its multifunctional configuration supports electrochemical experiments, corrosion testing, photoelectrochemical measurements, and magnetic electrode studies. Additional experimental functions include temperature control, nitrogen purging, deoxygenation, and vacuum pretreatment of samples before scanning. Cell volume can be customized according to specific experimental requirements.


Performance Features

•  High-Quality Construction: High-borosilicate glass cell body combined with a PTFE cover for chemical resistance and convenient observation.

• Detachable Working Electrode: Sheet-shaped working electrode can be disassembled for easy installation, removal, and maintenance.

•Multifunctional Design: Suitable for electrochemical, corrosion, photoelectrochemical, and magnetic electrode experiments.

•Temperature Control: Supports temperature-controlled experimental configurations.

• Nitrogen Purging and Deoxygenation: Enables nitrogen protection and oxygen removal for experiments requiring controlled electrolyte conditions.

• Vacuum Pretreatment: Supports vacuum treatment of samples before electrochemical scanning.

• Flexible Configuration: Single-layer and other experimental configurations can be selected according to application requirements.

• Customizable Capacity: Cell volume can be customized to accommodate different sample sizes and experimental needs.


Working Principle

The C003 Multifunctional Electrolytic Cell provides a controlled environment for electrochemical reactions and measurements. The working electrode, together with the corresponding reference and counter electrodes, forms an electrochemical testing system connected to an electrochemical workstation.

During testing, the workstation applies a controlled potential or current and records the electrochemical response of the sample. The detachable sheet-shaped working electrode allows convenient sample installation and replacement.

For specialized experiments, nitrogen purging and deoxygenation help reduce dissolved oxygen in the electrolyte, while vacuum pretreatment can be used to prepare samples before scanning. Temperature-control configurations help maintain suitable experimental conditions for temperature-sensitive measurements. Its flexible design also accommodates photoelectrochemical and magnetic electrode research.


Technical Parameters

Parameter

Specification

Model

C003

Product Type

Multifunctional Electrolytic Cell

Cell Body Material

High-Borosilicate Glass

Cover Material

PTFE

Working Electrode Type

Sheet-Shaped Working Electrode

Working Electrode Structure

Detachable

Cell Volume

Customizable

Cell Configuration

Single-layer and configurable designs

Temperature Control

Supported

Nitrogen Protection

Supported

Deoxygenation

Supported

Vacuum Pretreatment

Supported

Main Applications

Electrochemical, corrosion, photoelectrochemical, and magnetic electrode experiments


Application Scenarios

The C003 Multifunctional Electrolytic Cell is suitable for various advanced laboratory research and electrochemical testing applications.

• Electrochemical Research: Supports conventional electrochemical measurements and electrode performance evaluation.

•  Corrosion Testing: Used to investigate corrosion behavior, electrode reactions, and material protection performance.

• Photoelectrochemical Experiments: Suitable for research involving light-assisted electrochemical reactions and photoactive electrode materials.

• Magnetic Electrode Research: Supports electrochemical experiments involving magnetic electrodes.

• Temperature-Controlled Experiments: Provides temperature regulation for studies requiring stable thermal conditions.

•Nitrogen-Protected Experiments: Enables nitrogen purging and deoxygenation for oxygen-sensitive electrochemical reactions.

• Vacuum Sample Pretreatment: Supports sample vacuum treatment before electrochemical scanning.


C003 vs. Conventional Electrolytic Cells

Comparison

C003 Multifunctional Cell

Conventional Electrolytic Cell

Cell Body Material

High-borosilicate glass

Depends on model

Cover Material

PTFE

Depends on model

Working Electrode

Detachable sheet-shaped electrode

Conventional electrode configuration

Electrode Handling

Convenient disassembly

Depends on design

Electrochemical Testing

Supported

Supported

Corrosion Testing

Supported

Supported

Photoelectrochemical Experiments

Supported

Depends on configuration

Magnetic Electrode Experiments

Supported

Depends on configuration

Temperature Control

Supported

Model-dependent

Nitrogen Purging

Supported

Model-dependent

Deoxygenation

Supported

Model-dependent

Vacuum Pretreatment

Supported

Model-dependent

Cell Volume

Customizable

Depends on model


Frequently Asked Questions (FAQ)

1. What is the C003 Multifunctional Electrolytic Cell used for?

The C003 is designed for electrochemical research, corrosion testing, photoelectrochemical experiments, magnetic electrode studies, and other specialized laboratory applications.

2. What materials are used in the C003 electrolytic cell?

The cell body is made of high-borosilicate glass, while the cover is manufactured from PTFE, providing chemical resistance for laboratory use.

3. Does the C003 have a detachable working electrode?

Yes. It features a detachable sheet-shaped working electrode that simplifies sample installation, removal, and handling.

4. Can the C003 be used for photoelectrochemical experiments?

Yes. Its multifunctional design supports photoelectrochemical research involving light-responsive electrode materials and electrochemical reactions.

5. Does the C003 support nitrogen purging and deoxygenation?

Yes. Nitrogen purging and deoxygenation functions help establish low-oxygen experimental conditions for oxygen-sensitive electrochemical measurements.

6. Can the C003 perform vacuum pretreatment?

Yes. The system supports vacuum pretreatment of samples before electrochemical scanning, helping prepare samples for subsequent measurements.

7. Does the C003 support temperature-controlled experiments?

Yes. Temperature-control configurations are available for experiments requiring controlled thermal conditions.

8. Can the volume of the C003 electrolytic cell be customized?

Yes. The cell volume can be customized according to sample dimensions, electrolyte requirements, and specific experimental applications.
