C001 Open Conventional Electrolytic Cell

Product Item: dhx018
Category: Laboratory electrolysis cell and electrode
Views: 1373
Supply Ability:50/month
Port:SHENZHEN
Model Number:C001
Payment Terms:T/T ,paypal
price: Inquiry

  • PRODUCT DETAIL

C001 Open Conventional Electrolytic Cell

Product Introduction

The C001 Open Conventional Electrolytic Cell is designed for laboratory electrochemical experiments and measurements, typically using a three-electrode system. Manufactured from high-borosilicate glass, it offers excellent visibility and chemical resistance for various experimental applications. With capacities ranging from 30 mL to 500 mL and customizable dimensions, the cell accommodates different experimental requirements. Its modular configuration supports various electrode sizes, optional salt bridges, Luggin capillaries, and atmospheric protection connections.

Available in single-layer and double-layer versions, the C001 can also provide constant-temperature control for experiments requiring precise thermal conditions.


Performance Features

• High-Quality Glass Construction: Made of high-borosilicate glass for excellent transparency and chemical resistance.

•  Flexible Capacity: Standard volumes range from 30 mL to 500 mL, with customized capacities available.

•  Reinforced Opening: Flanged cell opening improves structural strength and durability.

•  Multiple Electrode Ports: Available electrode hole diameters of 6.5 mm, 8.5 mm, 10.5 mm, and 12.5 mm accommodate different electrode sizes.

•  Flexible Configuration: Optional sand-core salt bridge or Luggin capillary for different experimental setups.

• Atmosphere Protection: Optional gas inlet and outlet ports support experiments requiring controlled atmospheres.

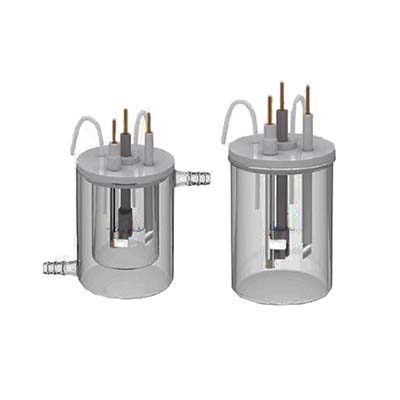

• Two Structural Designs: Single-layer and double-layer configurations are available.

•  Constant-Temperature Control: The double-layer version features a jacket for circulating thermostatic water to maintain the temperature of the electrolyte solution.


Working Principle

The C001 Open Conventional Electrolytic Cell provides a controlled vessel for electrochemical reactions and measurements. In a typical three-electrode configuration, the working electrode, reference electrode, and counter electrode are immersed in the electrolyte solution. An electrochemical workstation applies the required potential or current and monitors the resulting electrochemical response.

Optional salt bridges or Luggin capillaries help establish suitable reference electrode connections, while gas inlet and outlet ports enable atmospheric control. For temperature-sensitive experiments, the double-layer configuration circulates thermostatic water through the outer jacket to regulate the temperature of the electrolyte.


Technical Parameters

Parameter

Specification

Model

C001

Product Type

Open Conventional Electrolytic Cell

Cell Material

High-Borosilicate Glass

Standard Volume

30–500 mL

Customization

Custom volumes available

Electrode Configuration

Three-electrode system

Electrode Hole Diameters

6.5 mm, 8.5 mm, 10.5 mm, 12.5 mm

Cell Opening

Flanged design

Optional Accessories

Sand-core salt bridge, Luggin capillary

Atmosphere Protection

Optional gas inlet and outlet ports

Structural Versions

Single-layer and double-layer

Temperature Control

Circulating thermostatic water jacket (double-layer version)


Application Scenarios

The C001 Open Conventional Electrolytic Cell is suitable for a wide range of laboratory electrochemical applications, including:

•  Electrochemical Research: Three-electrode electrochemical measurements and fundamental electrochemical studies.

• Corrosion Testing: Laboratory investigation of metal corrosion and electrochemical protection.

•  Electrode Material Evaluation: Performance testing and characterization of working electrode materials.

• Electrocatalysis Research: Investigation of electrocatalytic reactions and electrode activity.

•   Battery and Energy Research: Electrochemical testing of functional materials and reaction systems.

• Temperature-Controlled Experiments: Electrochemical studies requiring stable electrolyte temperatures.

•  Atmosphere-Controlled Experiments: Research requiring gas protection or a controlled experimental atmosphere.


C001 vs. Conventional Electrolytic Cells

Comparison

C001 Open Conventional Electrolytic Cell

Basic Conventional Cell

Cell Material

High-borosilicate glass

Depends on configuration

Capacity

30–500 mL, customizable

Depends on model

Electrode Compatibility

Four available port diameters

May have limited options

Cell Opening

Reinforced flanged design

Conventional opening

Salt Bridge

Optional

Depends on configuration

Luggin Capillary

Optional

Depends on configuration

Atmosphere Protection

Optional gas inlet/outlet

Depends on configuration

Temperature Control

Optional double-layer jacket

Depends on configuration


Frequently Asked Questions (FAQ)

1. What is the C001 Open Conventional Electrolytic Cell used for?

It is designed for laboratory electrochemical experiments, particularly measurements using a three-electrode system, including corrosion studies, electrode characterization, and electrocatalysis research.

2. What material is used to manufacture the C001 electrolytic cell?

The cell body is made of high-borosilicate glass, providing transparency and chemical resistance for laboratory applications.

3. What is the available volume of the C001 electrolytic cell?

The standard capacity ranges from 30 mL to 500 mL. Customized volumes are also available according to experimental requirements.

4. What electrode sizes are compatible with the C001?

The cell provides electrode holes with diameters of 6.5 mm, 8.5 mm, 10.5 mm, and 12.5 mm to accommodate electrodes of different sizes.

5. Can the C001 be equipped with a salt bridge or Luggin capillary?

Yes. A sand-core salt bridge or Luggin capillary can be added according to the requirements of different electrochemical experiments.

6. Does the C001 support atmosphere protection?

Yes. Optional gas inlet and outlet ports can be incorporated to support experiments requiring a protective or controlled atmosphere.

7. What is the difference between the single-layer and double-layer versions?

The single-layer version provides a conventional electrolytic cell structure. The double-layer version includes an outer jacket through which circulating thermostatic water flows to regulate the electrolyte temperature.

8. Can the C001 electrolytic cell be customized?

Yes. Capacity, electrode port configuration, salt bridge or Luggin capillary accessories, gas connections, and structural options can be customized to meet specific experimental requirements.
