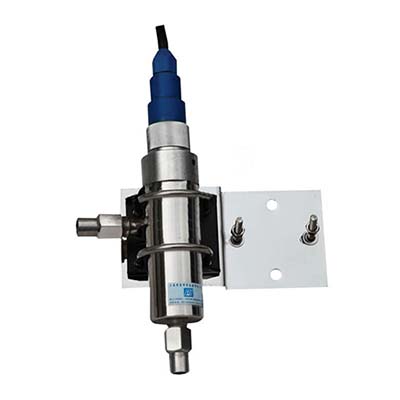

DDFG-2043 Series Online Conductivity Electrode
Product Introduction
The DDFG-2043 Series Online Conductivity Electrode is designed for continuous conductivity measurement in circulating liquid systems. Featuring a compact structure, stainless steel construction, and convenient installation and maintenance, it supports reliable monitoring of liquid conductivity in industrial and water quality applications.
The series offers multiple models with different conductivity cell constants and measurement ranges, from low-conductivity water to higher-conductivity liquids. Flange, hose, and threaded connections provide installation flexibility for different pipeline and circulation system requirements.
Performance Features
• Compact Design: Small volume for convenient installation in space-limited systems.
• Stainless Steel Construction: Offers a durable housing with a neat appearance.
• Reliable Performance: Designed for online conductivity monitoring.
• Easy Maintenance: Convenient disassembly simplifies routine inspection and maintenance.
• Multiple Measurement Ranges: Model options cover conductivity ranges from 0–20 μS/cm to 20,000 μS/cm.
• Flexible Installation: Available with circulation-type flange, hose, or pipe-thread connections.
• Multiple Cell Constants: Options include 0.01, 0.1, and 1 cm⁻¹ for different conductivity measurement requirements.
Working Principle
The DDFG-2043 conductivity electrode measures the electrical conductivity of a liquid through its response to an electrical signal applied across the electrode cell. The measured conductance, together with the electrode cell constant, is used to determine the liquid's conductivity.
Different cell constants are suited to different conductivity ranges. Selecting the appropriate model helps provide suitable measurement performance for the liquid and application. The electrode is installed in a circulating system to support continuous online monitoring.
Technical Parameters
|
Model |
Conductivity Cell Constant (cm⁻¹) |
Measurement Range |
Installation Type and Connection |
|
DDFG-2043-205B |
0.01 |
0–20 μS/cm |
Circulation-type flange; flange diameter 100 mm; bolt center-circle diameter 75 mm; 4 holes, Ø14 mm; feed tube Ø10 mm |
|
DDFG-2043-405B |
0.1 |
1–200 μS/cm |
Circulation-type hose; feed tube Ø6 mm; outlet tube Ø10 mm |
|
DDFG-2043-605B |
1 |
10–10,000 μS/cm |
Circulation-type pipe thread; inlet and outlet Z1/2 thread |
|
DDFG-2043-205C |
0.01 |
0–20 μS/cm |
Circulation-type flange; flange diameter 100 mm; hole-center-circle diameter 75 mm; 4 holes, Ø14 mm; outlet tube Ø10 mm |
|
DDFG-2043-405C |
0.1 |
20–200 μS/cm |
Circulation-type hose; feed tube Ø6 mm; outlet tube Ø10 mm |
|
DDFG-2043-605C |
1 |
200–20,000 μS/cm |
Circulation-type pipe thread; inlet and outlet Z1/2 thread |
Application Scenarios
• Water Quality Monitoring: Online conductivity measurement in water treatment and water circulation systems.
• Low-Conductivity Water Systems: Monitoring low-conductivity water with models featuring a 0.01 cm⁻¹ cell constant.
• Industrial Process Control: Tracking changes in liquid conductivity during production processes.
• Chemical and Process Industries: Conductivity monitoring in circulating liquid systems, subject to material compatibility.
• Pipeline and Circulation Systems: Integration through flange, hose, or threaded connections according to the selected model.
Model Comparison
|
Model Group |
Cell Constant |
Conductivity Range |
Connection Type |
|
205B / 205C |
0.01 cm⁻¹ |
0–20 μS/cm |
Flange |
|
405B |
0.1 cm⁻¹ |
1–200 μS/cm |
Hose |
|
405C |
0.1 cm⁻¹ |
20–200 μS/cm |
Hose |
|
605B |
1 cm⁻¹ |
10–10,000 μS/cm |
Pipe thread |
|
605C |
1 cm⁻¹ |
200–20,000 μS/cm |
Pipe thread |
Selection tip: Choose the model according to the expected conductivity range and the required installation connection. The B and C variants have different specified ranges for some cell constants, so verify the correct model before ordering.
Frequently Asked Questions (FAQ)
1. What is the DDFG-2043 series conductivity electrode used for?
It is designed for online conductivity measurement in circulating liquid systems, including water monitoring and industrial process applications.
2. What conductivity ranges are available?
The series offers models covering ranges from 0–20 μS/cm to 20,000 μS/cm, depending on the selected model.
3. What cell constants are available?
The available cell constants are 0.01, 0.1, and 1 cm⁻¹.
4. What is the difference between the 205B and 205C models?
Both models have a cell constant of 0.01 cm⁻¹ and a specified range of 0–20 μS/cm. Their flange installation descriptions differ slightly in the source, so confirm the connection details with the supplier.
5. What installation options does the DDFG-2043 series support?
The series supports circulation-type flange, hose, and pipe-thread installation, depending on the model.
6. Is the electrode easy to maintain?
Yes. The product description highlights its convenient disassembly and maintenance.
7. How do I choose the correct model?
Consider the expected conductivity range, required cell constant, and connection type. Also confirm compatibility with the liquid, operating temperature, pressure, and the associated transmitter.
8. Can the electrode be used for continuous monitoring?
It is designed for online conductivity measurement in circulating systems. Confirm the complete installation and transmitter requirements for your application.
